Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the mating faces are clean and free of foreign material.

NOTE: Rotate the seal as the seal is being installed on the crankshaft.

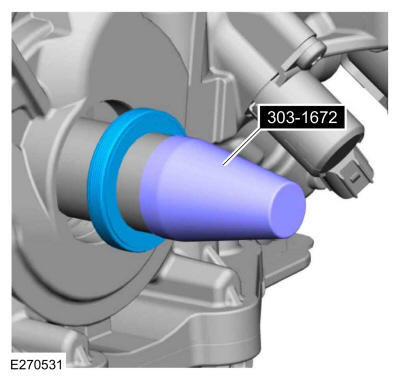

Using the special tool, position the crankshaft front seal on the crankshaft. Use Special Service Tool: 303-1672 Installer, Crankshaft Seal.

Courtesy of FORD MOTOR COMPANY

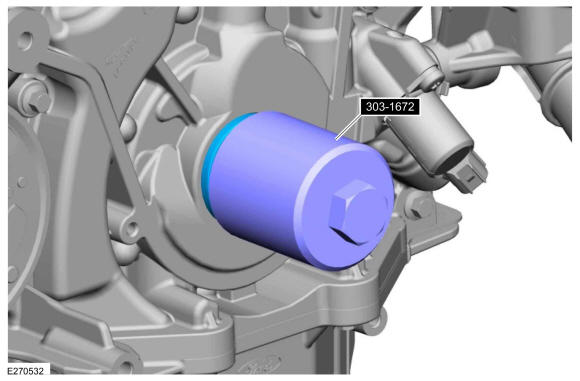

Using the special tool, install the crankshaft front seal. Use Special Service Tool: 303-1672 Installer, Crankshaft Seal.

Courtesy of FORD MOTOR COMPANY
NOTE: Align the crankshaft sprocket with the mark made during removal.

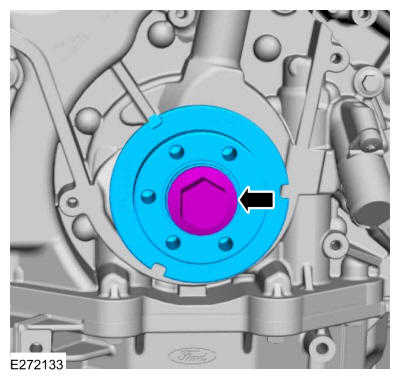

Install the crankshaft sprocket and the bolt.

Torque: Stage 1: 74 lb.ft (100 Nm)

Stage 2: 221 lb.ft (300 Nm)

Stage 3: 90°

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1677 Locking Tool, Flywheel.

Courtesy of FORD MOTOR COMPANY
Install the special tool.
- NOTE: Only rotate the crankshaft clockwise.

  Rotate the crankshaft clockwise so the crankshaft contacts the locking crankshaft pin. Use Special Service Tool: 303-1671 Pin, Locking Crankshaft.
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the starter motor. Refer to: Starter Motor .
2. Install the timing belt. Refer to: Timing Belt .
Road test the vehicle.
