Camshaft Rear Seal: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the READ belt. Refer to: Rear End Accessory Drive (READ) .
-
NOTE: Use the original bolts for the special tool.

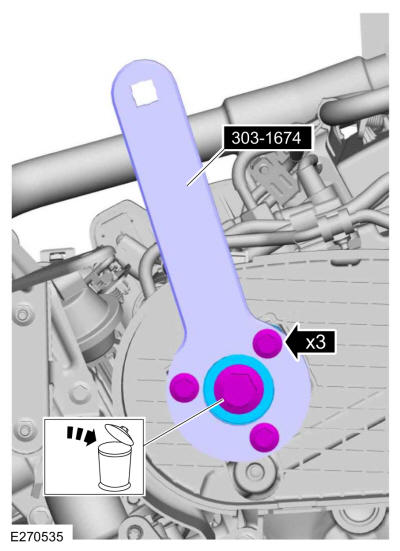

Using the special tool, remove the bolt and the camshaft gear hub. Discard the bolt. Use Special Service Tool: 303-1674 Tool, Holding Camshaft Sprocket.

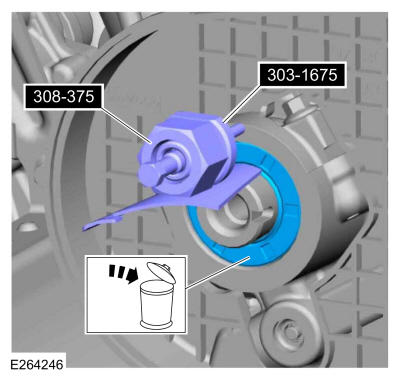

- Using the special tools, remove and discard the camshaft rear seal. Use Special Service Tool: 303-1675 Adapter, Seal Remover., 308-375 Remover, Input Shaft Seal.
