Camshaft Front Seal: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. Remove the timing belt. Refer to: Timing Belt .
  2. Remove Special Service Tool: 303-1670 Pins, Camshaft Locking.
    GFD555963Courtesy of FORD MOTOR COMPANY

    LH camshaft seal

  3. NOTE: Note the position of the camshaft pulley prior to removal.

    Remove the bolts and the camshaft pulley.

    GFD555964Courtesy of FORD MOTOR COMPANY
  4. NOTE: Use the original bolts for the special tool.

    Using the special tool, remove the bolt and the camshaft gear hub. Discard the bolt. Use Special Service Tool: 303-1674 Tool, Holding Camshaft Sprocket.

    GFD555965Courtesy of FORD MOTOR COMPANY
  5. Using the special tools, remove and discard the camshaft front seal. Use Special Service Tool: 303-1675 Adapter, Seal Remover., 308-375 Remover, Input Shaft Seal.
    GFD555966Courtesy of FORD MOTOR COMPANY

    RH camshaft seal

  6. NOTE: Note the position of the camshaft pulley prior to removal.

    Remove the bolts and the camshaft pulley.

    GFD555967Courtesy of FORD MOTOR COMPANY

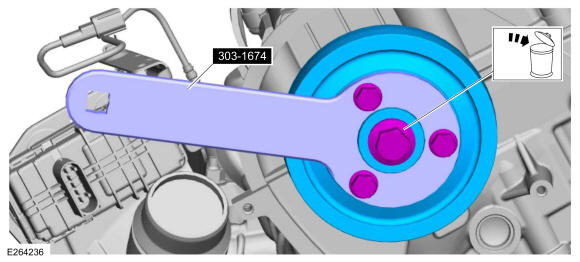

  7. NOTE: Use the original bolts for the special tool.

    Using the special tool, remove the bolt and the camshaft gear hub. Discard the bolt. Use Special Service Tool: 303-1674 Tool, Holding Camshaft Sprocket.

    GFD555968Courtesy of FORD MOTOR COMPANY
  8. Using the special tools, remove and discard the camshaft front seal. Use Special Service Tool: 303-1675 Adapter, Seal Remover., 308-375 Remover, Input Shaft Seal.
GFD555969Courtesy of FORD MOTOR COMPANY
