Camshaft Front Seal: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

RH camshaft seal

  1. Using the special tool, install the front camshaft seal. Use Special Service Tool: 303-1673 Installer, Camshaft Seal.
    GFD555970Courtesy of FORD MOTOR COMPANY
  2. Using the special tool, install the RH camshaft gear hub and the bolts. Use Special Service Tool: 303-1674 Tool, Holding Camshaft Sprocket.

    Torque: Stage 1: 59 lb.ft (80 Nm)

    Stage 2: 80°

    GFD555971Courtesy of FORD MOTOR COMPANY
  3. NOTE: Only tighten the bolts finger tight at this stage.

    Install the camshaft pulley and the bolts.

    GFD555967Courtesy of FORD MOTOR COMPANY

    LH camshaft seal

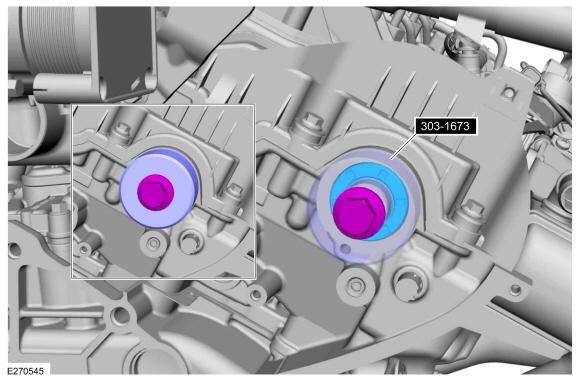

  4. Using the special tool, install the front camshaft seal. Use Special Service Tool: 303-1673 Installer, Camshaft Seal.
    GFD555972Courtesy of FORD MOTOR COMPANY

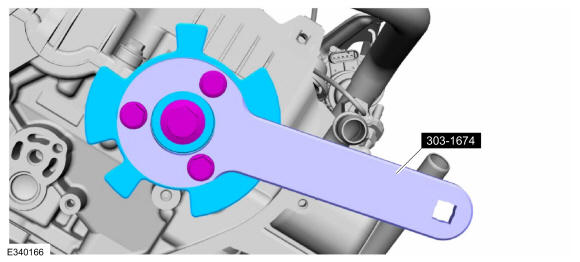

  5. Using the special tool, install the LH camshaft gear hub and the bolts. Use Special Service Tool: 303-1674 Tool, Holding Camshaft Sprocket.

    Torque: Stage 1: 59 lb.ft (80 Nm)

    Stage 2: 80°

    GFD555973Courtesy of FORD MOTOR COMPANY

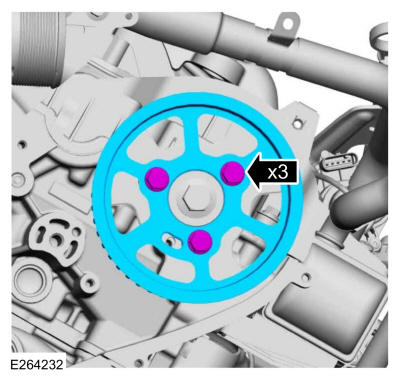

  6. NOTE: Only tighten the bolts finger tight at this stage.

    Install the camshaft pulley and the bolts.

    GFD555964Courtesy of FORD MOTOR COMPANY

    All vehicles

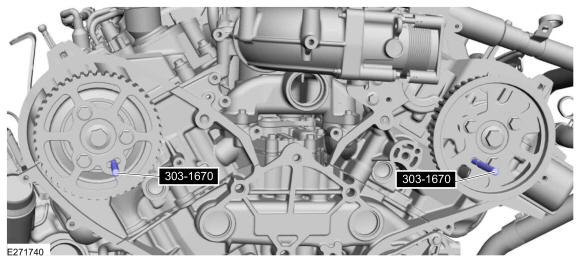

  7. Install Special Service Tool: 303-1670 Pins, Camshaft Locking.
    GFD555963Courtesy of FORD MOTOR COMPANY
  8. Install the timing belt. Refer to: Timing Belt .
