Cylinder Head: Assembly

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All cylinder heads

NOTE: If installing the original valves, make sure the valves are installed in the same position from which they were removed. Coat the valve stems with clean engine oil.

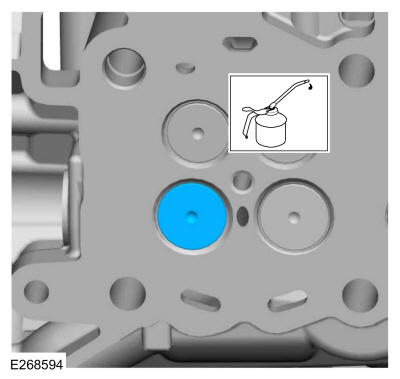

Lubricate with clean engine oil and install the valve in the cylinder head.

Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

Courtesy of FORD MOTOR COMPANY
NOTE: Use commercially available valve stem seal pliers.

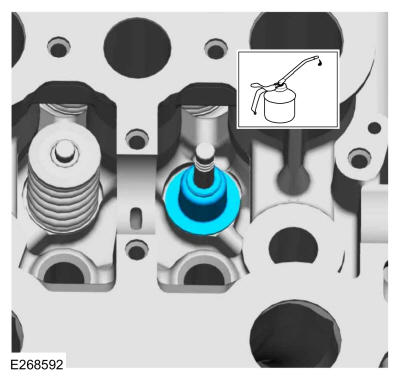

Lubricate with clean engine oil and install the valve seal.

Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

Courtesy of FORD MOTOR COMPANY
NOTE: Use a small screwdriver and multi-purpose grease to install the valve collets. Check the seating of the valve collets.

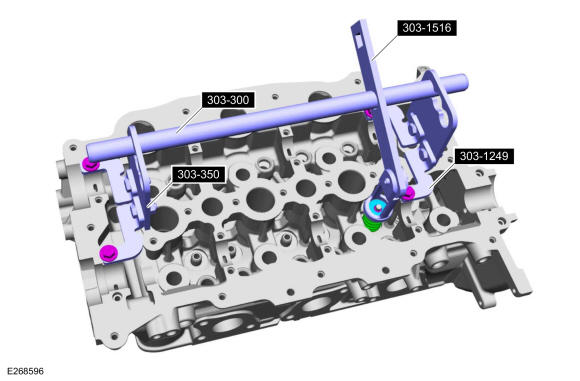

Using the special tools, install the valve spring, valve spring retainer and the valve collet. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor., 303-350 (T89P-6565-A) Compressor, Valve Spring., 303-1249 Valve Spring Compressor., 303-1516 Compressor, Valve Spring.

Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Courtesy of FORD MOTOR COMPANY
Repeat the previous 3 steps for each valve.
RH cylinder head

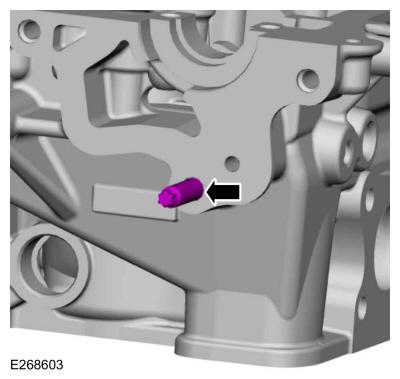

Install the vacuum pump stud.
Torque: 115 lb.in (13 Nm)

Courtesy of FORD MOTOR COMPANY

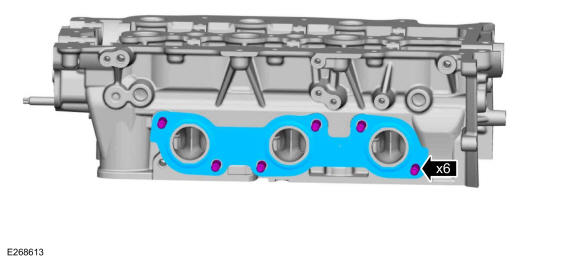

- Install the exhaust manifold studs as needed.
  Torque: 115 lb.in (13 Nm)
- Install the RH exhaust manifold gasket.
Courtesy of FORD MOTOR COMPANY
Install the RH exhaust manifold and the nuts.
Torque: Tighten the nuts in the sequence shown to: : 21 lb.ft (28 Nm) Tighten the nuts in the following order 1, 2, 3, 5, 1, 2 to: : 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

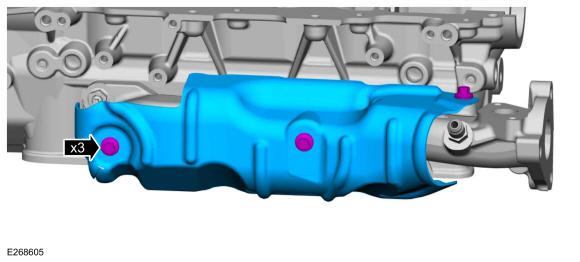

Install the RH exhaust manifold heat shield and the bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

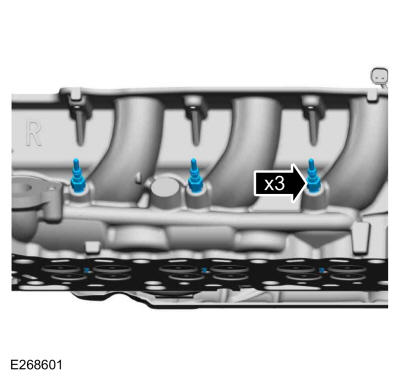

Install the RH glow plugs.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

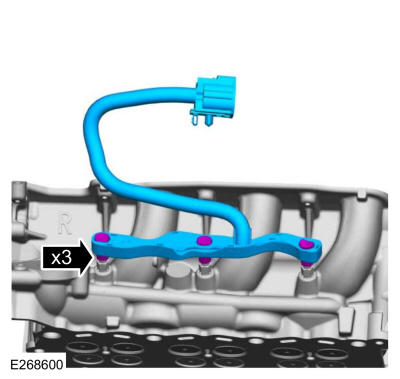

Install the RH glow plug harness.

Courtesy of FORD MOTOR COMPANY

LH cylinder head

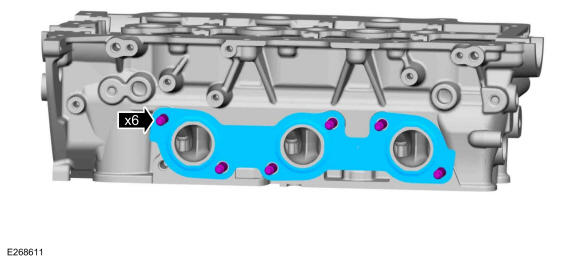

- Install the exhaust manifold studs as needed.
  Torque: 115 lb.in (13 Nm)
- Install the LH exhaust manifold gasket.
Courtesy of FORD MOTOR COMPANY

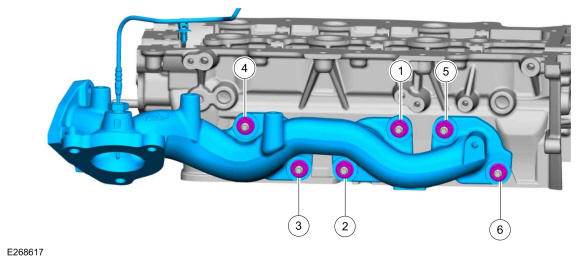

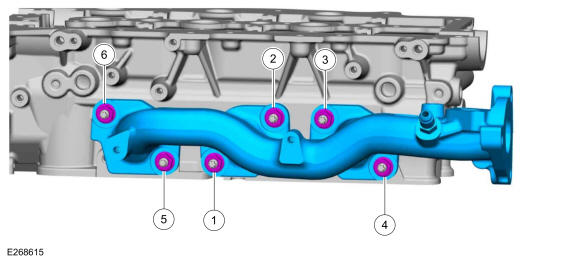

Install the LH exhaust manifold and the nuts.
Torque: Tighten the nuts in the sequence shown to: : 21 lb.ft (28 Nm) Tighten the nuts in the following order 1, 2, 3, 5, 1, 2 to: : 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

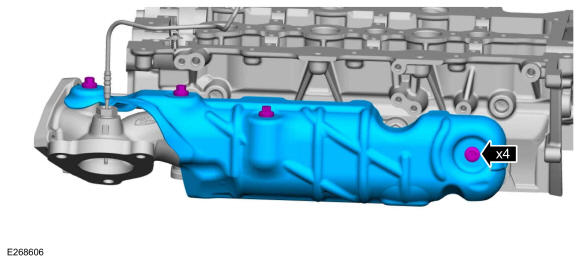

Install the LH exhaust manifold heat shield and the bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

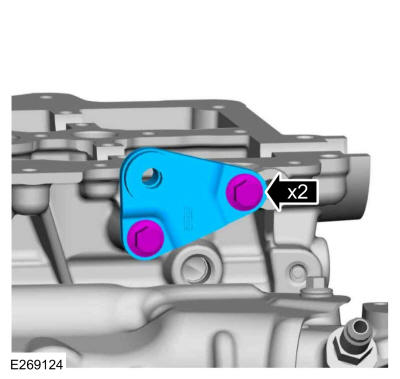

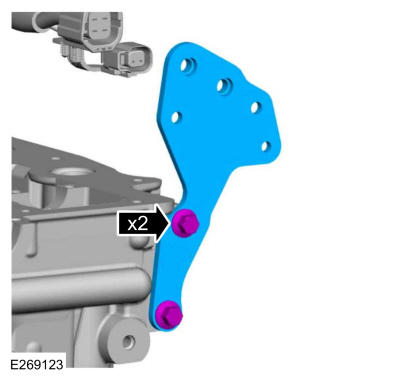

Install the EGR cooler bracket and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

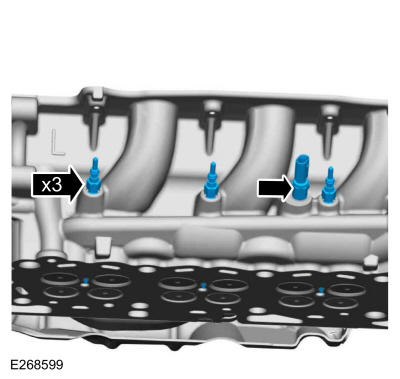

- Install the new CHT sensor.
  Torque: 97 lb.in (11 Nm)
- Install the LH glow plugs.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

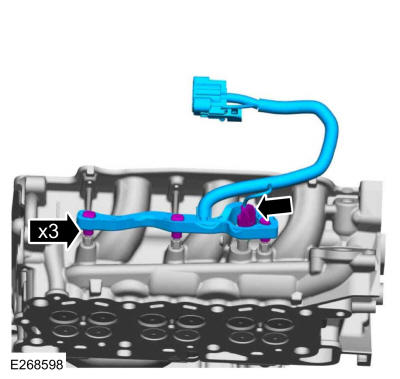

- Install the LH glow plug harness.
- Connect the CHT electrical connector.
Courtesy of FORD MOTOR COMPANY

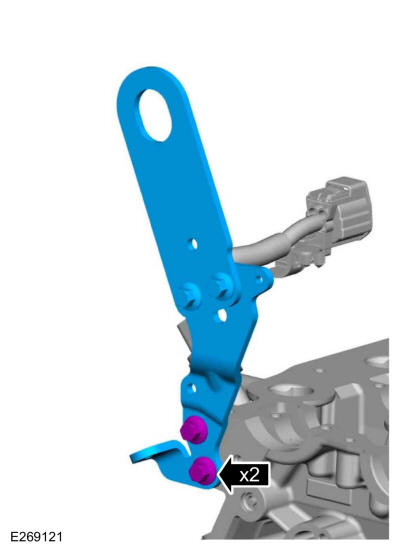

Install the rear lifting eye and the bolts.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

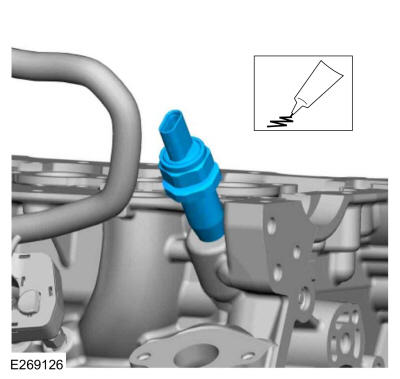

NOTE: If the EOP sensor is to be reused, apply thread sealant.

Install the EOP sensor.

Material: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)

Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Install the front lifting eye and the bolts.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

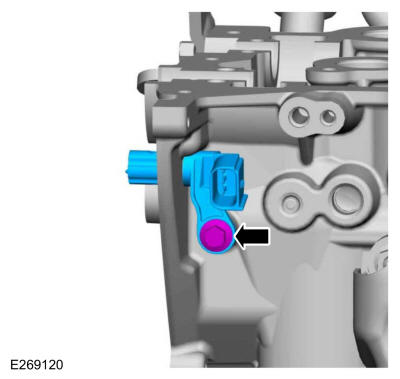

Install the CMP sensor and the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
