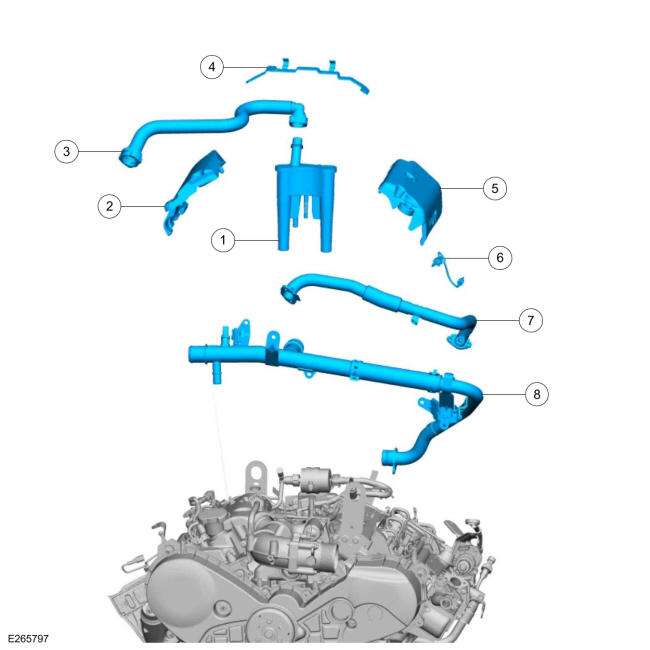

Exploded View of Engine Upper View 1
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6A785 | Crankcase vent oil separator |
| 2 | 9U550 | RH (right hand) fuel injector noise insulator |
| 3 | 6A886 | Crankcase vent oil separator hose |
| 4 | 6N081 | Engine cover bracket |
| 5 | 9U550 | LH (left hand) fuel injector noise insulator |
| 6 | 12B591 | EGRT (exhaust gas recirculation temperature) sensor |
| 7 | 9H449 | EGR (exhaust gas recirculation) outlet tube |
| 8 | 8555 | Coolant bypass tube and EGR cooler outlet hose assembly |
