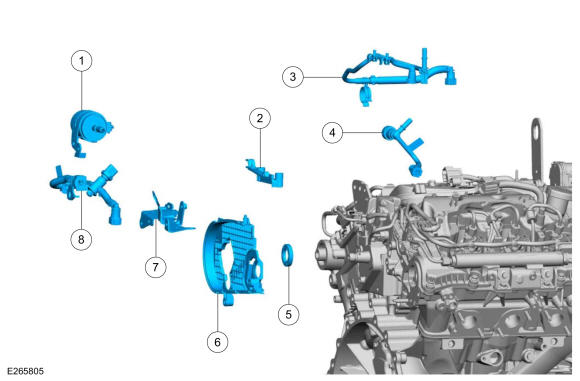

Exploded View Of Fuel Tubes and READ Cover
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9T329 | Fuel secondary filter and bracket assembly |
| 2 | 6A247 | Accessory drive belt cover |
| 3 | 9K151 | Fuel return tube assembly |
| 4 | 9J280 | Fuel supply tube assembly |
| 5 | 6K292 | Camshaft seal |
| 6 | 6A247 | Accessory drive belt cover |
| 7 | 14C508 | Wire harness-to-engine bracket |
| 8 | 9J280 | Fuel supply tube assembly |
