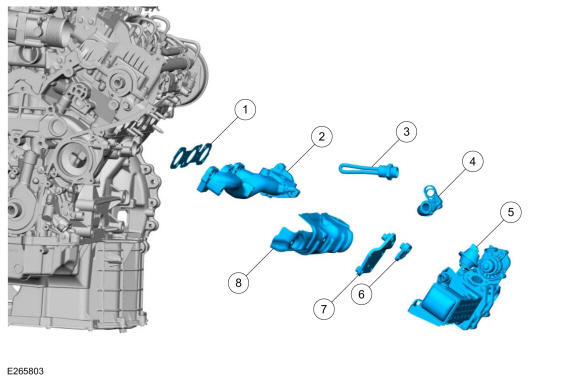

Exploded View Of Engine LH View 2
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9448 | LH exhaust manifold gasket |
| 2 | 9431 | LH exhaust manifold |
| 3 | 6A051 | Engine block heater assembly |
| 4 | 9Y439 | EGR cooler outlet hose assembly |
| 5 | 9U438 | EGR cooler assembly |
| 6 | 9F465 | EGR cooler mounting bracket |
| 7 | 9F465 | EGR cooler mounting bracket |
| 8 | 9N454 | LH exhaust manifold heat shield |
