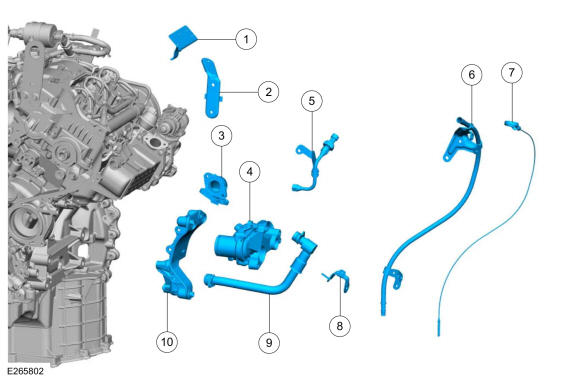

Exploded View Of Engine LH View 1
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14C508 | Wiring harness-to-engine bracket |
| 2 | 9P995 | Fuel tube front support bracket |
| 3 | 9D477 | EGR valve-to-exhaust manifold tube assembly |
| 4 | 8A544 | Coolant inlet connector assembly |
| 5 | 9F459 | EGR EP (exhaust pressure) valve tube assembly |
| 6 | 6B667 | Oil level tube and indicator assembly |
| 7 | 6750 | Oil level indicator |
| 8 | 9P995 | Fuel tube front support bracket |
| 9 | 9Y438 | EGR coolant inlet tube assembly |
| 10 | 8D611 | LH FEAD (front end accessory drive) bracket |
