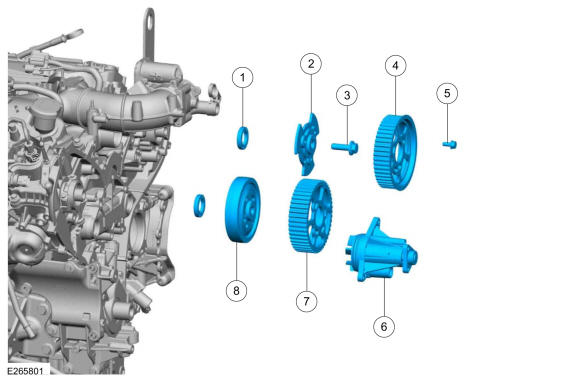

Exploded View Of Camshaft Drives and Coolant Pump
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6K292 | Camshaft seal (2 required) |
| 2 | 6257 | LH camshaft gear hub |
| 3 | 6279 | Camshaft gear hub bolt (2 required) |
| 4 | 6K286 | LH camshaft pulley assembly |
| 5 | E801031 | Camshaft pulley assembly bolt (6 required) |
| 6 | 8501 | Coolant pump assembly |
| 7 | 6K286 | RH camshaft pulley assembly |
| 8 | 6257 | RH camshaft gear hub |
