Cylinder Heads, Oil Cooler and Fuel Injection Pump
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

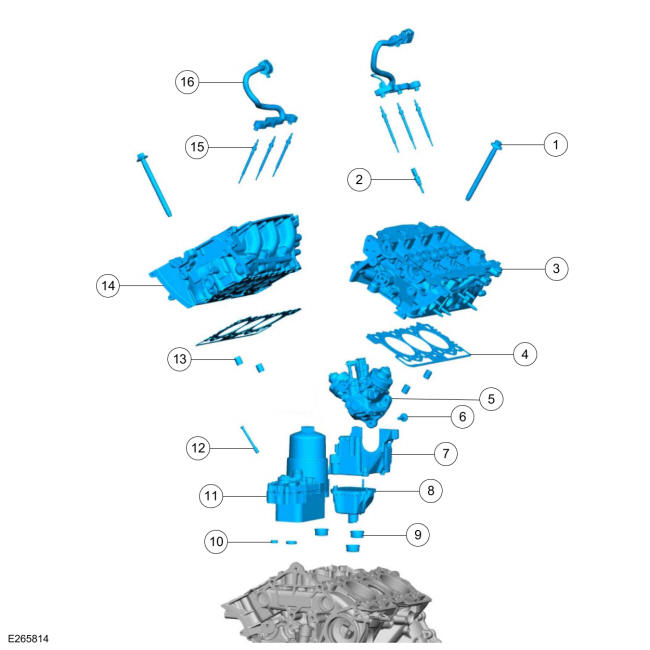

| Item | Part Number | Description |
|---|---|---|
| 1 | 6065 | Cylinder head bolt (16 required) |
| 2 | 6G004 | CHT (cylinder head temperature) sensor |
| 3 | 6050 | LH cylinder head |
| 4 | 6051 | Cylinder head gasket (2 required) |
| 5 | 9B395 | Fuel injection pump |
| 6 | 9D404 | Fuel injection pump bolt (3 required) |
| 7 | 9D355 | Fuel injection pump mounting bracket |
| 8 | 6C714 | CCV (crankcase ventilation) reservoir assembly |
| 9 | 6870 | Crankcase vent tube gasket (3 required) |
| 10 | 6L709 | Oil filter adapter and cooler O-ring (4 required) |
| 11 | 6B624 | Oil filter adapter and cooler assembly |
| 12 | 6C683 | Engine oil filter |
| 13 | W713977 | Cylinder head dowel (4 required) |
| 14 | 6049 | RH cylinder head |
| 15 | 6M090 | Glow plug (6 required) |
| 16 | 12A378 | Glow plug wiring (2 required) |
