Throttle Body: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

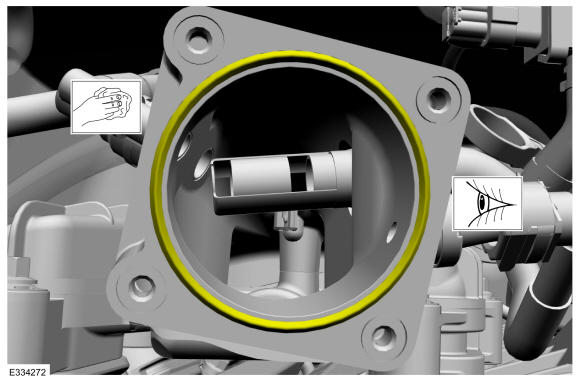

NOTE: Make sure that the mating faces are clean and free of foreign material.
Inspect the throttle body gasket, clean and replace the throttle body gasket as needed.

Courtesy of FORD MOTOR COMPANY

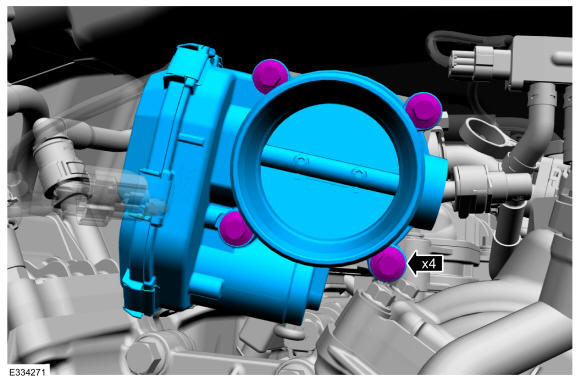

Install the throttle body, then install and tighten the throttle body bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

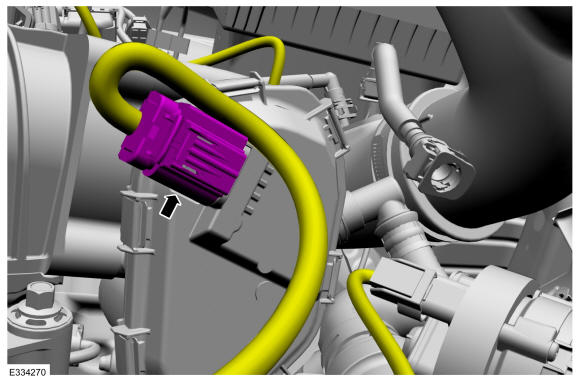

NOTE: When connecting the throttle body electrical connector engage the red connector locking tab after fully installing the throttle body electrical connector. The red tab will not slide forward unless the throttle body electrical connector is fully installed.

Connect the throttle body electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the charge air cooler outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
Road test the vehicle.
