Port Injection Fuel Rail RH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1. The fuel injector clip can be reused if it is not damaged during removal. If the clip is reused, the 2 sides of the clip should be squeezed back into shape by placing it between index finger and thumb.
2. NOTE: Make sure that new fuel injector O-ring seals are installed.

  Install the all of the new fuel injector O-ring seals and the fuel injector retaining clips onto the fuel injectors. Lubricate the new fuel injector O-ring seals with clean engine oil. Refer to: Specifications .
Courtesy of FORD MOTOR COMPANY

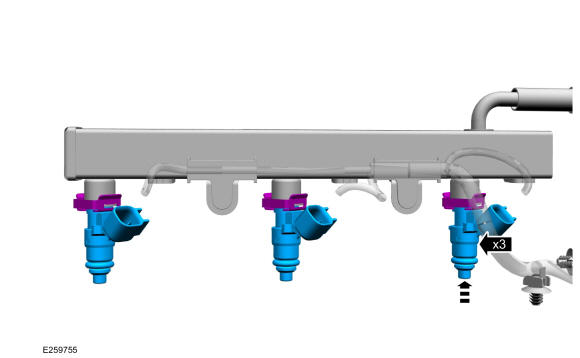

Install the fuel injectors into the fuel rail.

Courtesy of FORD MOTOR COMPANY
Connect the fuel injector electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: Ensure that the wiring harness is not damaged during the fuel rail installation.

Install the fuel rail, push down on the fuel rail above the injectors, then install and tighten the fuel rail retaining bolts in the following 2 stages and in the sequence shown in illustration.

Torque

:Stage 1: 89 lb.in (10 Nm)

Stage 2: Tighten an additional : 45°

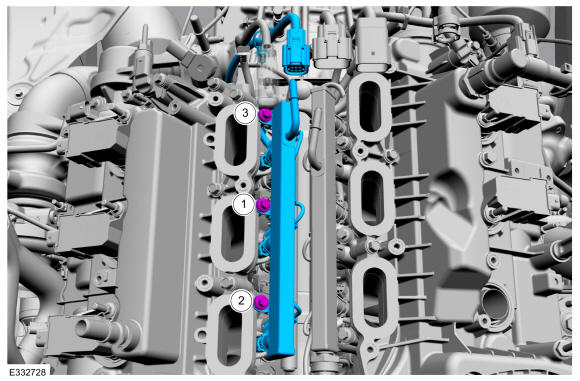

Fig 1: Tightening Fuel Rail Retaining Bolts In Sequence
Courtesy of FORD MOTOR COMPANY
Attach the wire harness retainers.

Courtesy of FORD MOTOR COMPANY
Install the fuel supply manifold, then install and tighten the retainers.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the fuel supply quick connect couplings. Attach the wire harness retainers. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.

Install the fuel injection pump noise insulator.

Courtesy of FORD MOTOR COMPANY
Install the high-pressure fuel pump shield, then install and tighten the retainers.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
If equipped, install the engine rear undershield. Refer to: Engine Rear Undershield .
Attach the harness retainer, then install and tighten the bolt.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the quick release couplings. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Connect the fuel rail harness main electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the intake manifold. Refer to: Intake Manifold .
Reconnect the battery negative cable. Refer to: Battery Disconnect and Connect .
Pressurize the fuel system. Refer to: Fuel System Pressure Release .
