Port Injection Fuel Rail LH: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Disconnect the battery negative cable. Refer to: Battery Disconnect and Connect .
  3. Remove the intake manifold. Refer to: Intake Manifold .

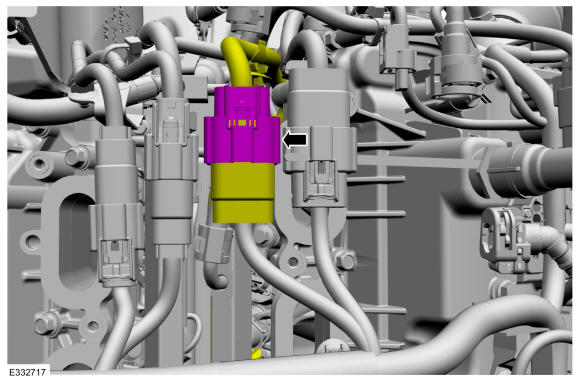

  4. Disconnect the fuel rail harness main electrical connector.
    GFD557118Courtesy of FORD MOTOR COMPANY

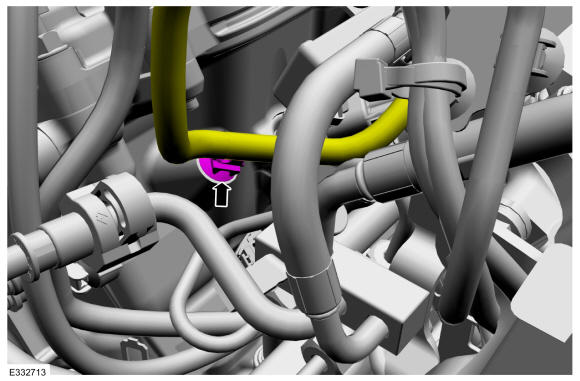

  5. Detach the fuel rail harness retainer.
    GFD557119Courtesy of FORD MOTOR COMPANY

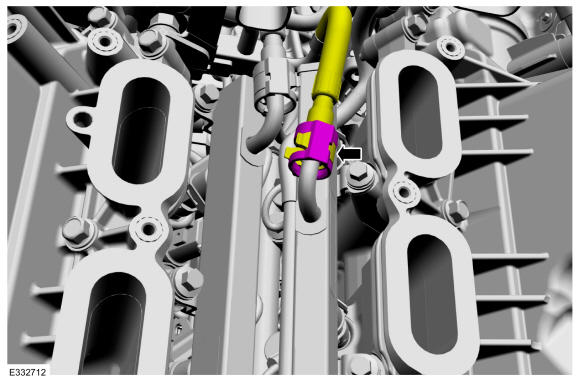

  6. Disconnect the quick release coupling. Refer to: Quick Release Coupling .
    GFD557120Courtesy of FORD MOTOR COMPANY

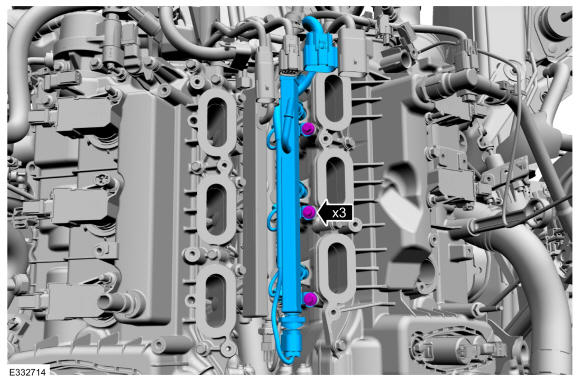

  7. NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.

    1. Use compressed air to remove any dirt or foreign material from the cylinder head, block and general surrounding area of the fuel rail and the fuel injectors.
    2. Remove the fuel rail retaining bolts, then remove the fuel rail.

    • Should any of the fuel injectors remain in the head, then the fuel injector electrical connectors will need to be disconnected as the fuel rail is being removed.

    GFD557121Courtesy of FORD MOTOR COMPANY

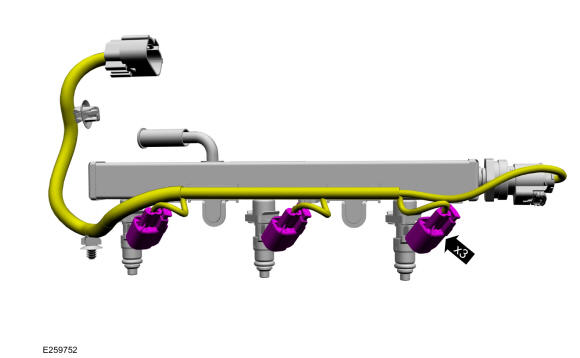

  8. Disconnect the fuel injector electrical connectors.
    GFD557122Courtesy of FORD MOTOR COMPANY

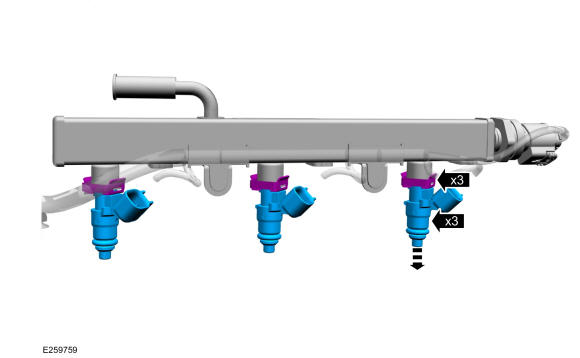

    1. Remove the fuel injector retaining clips.
    2. Remove the fuel injectors from the fuel rail.
    GFD557123Courtesy of FORD MOTOR COMPANY
  10. Remove and discard all of the fuel injector O-ring seals.
GFD557124Courtesy of FORD MOTOR COMPANY
