High-Pressure Fuel Pump: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.

NOTE: The drive lobe for the high-pressure fuel pump must be at BDC (bottom dead center) for the high-pressure fuel pump installation.

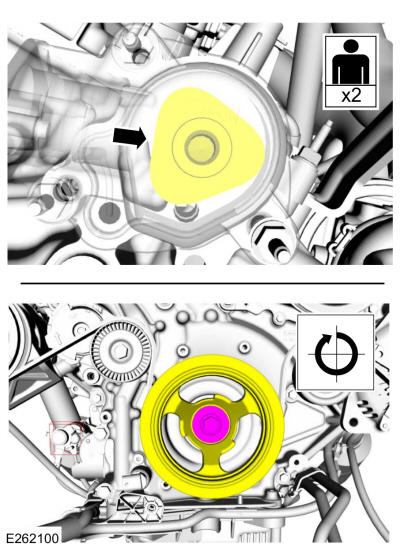

With the help of an assistant, using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump drive lobe is at BDC.

Courtesy of FORD MOTOR COMPANY

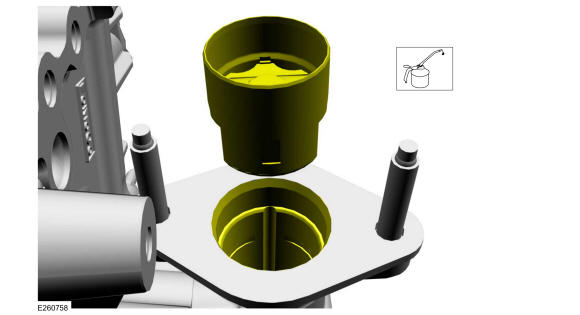

Apply clean engine oil to the high-pressure fuel pump drive unit bore, the drive lobe and the roller tappet. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: The roller tappets roller goes down towards the camshaft.

NOTE: Align the notch on the high-pressure fuel pump tappet with the groove in the high-pressure fuel pump drive unit bore.

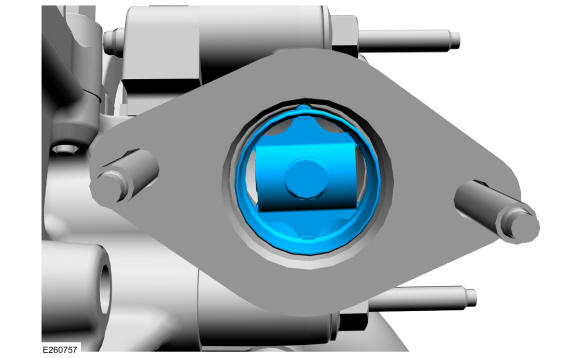

Install the high-pressure fuel pump tappet.

Courtesy of FORD MOTOR COMPANY

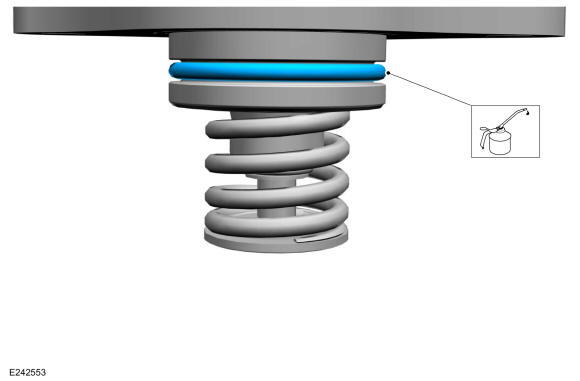

Install a new high-pressure fuel pump O-ring seal and lubricate with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

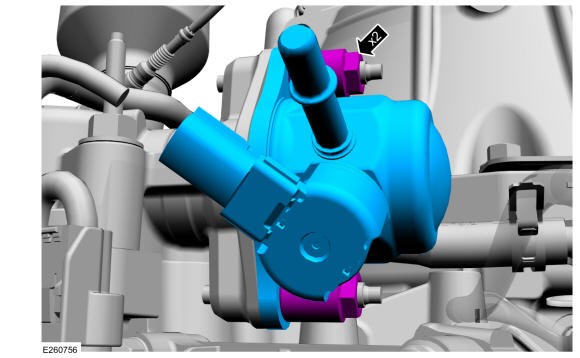

Install the high-pressure fuel pump, then install and finger tighten the high-pressure fuel pump nuts. Alternately tighten each of the high-pressure fuel pump nuts one complete revolution until seated. Then tighten the fuel high-pressure fuel pump nuts in the following 2 stages.
Torque

:Stage 1: Tighten to : 177 lb.in (20 Nm)

Stage 2: Tighten an additional : 45°

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure that a new high-pressure fuel tube is installed.

Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in illustration.

Courtesy of FORD MOTOR COMPANY

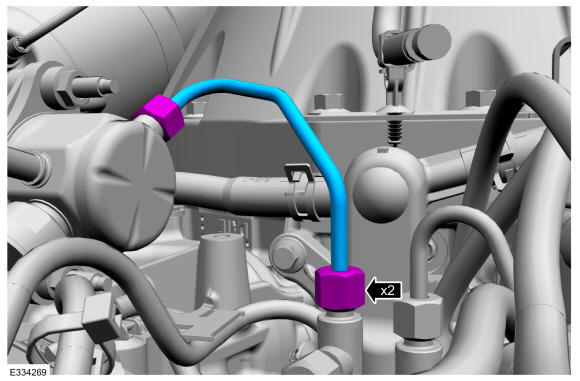

Install the high-pressure fuel tube and tighten the flare nuts finger tight, then tighten the flare nuts in the following 2 stages.
Torque

:Stage 1: Tighten to: : 62 lb.in (7 Nm)

Stage 2: Tighten to: : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

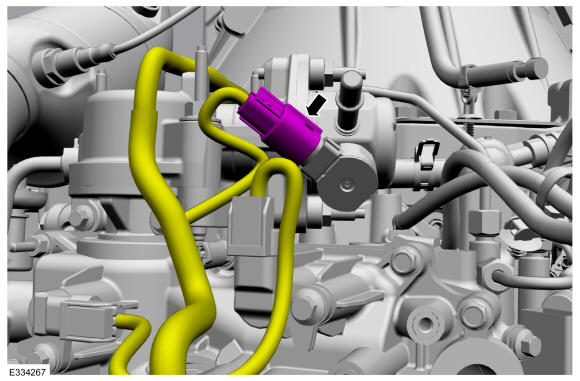

Connect the high-pressure fuel pump electrical connector.

Courtesy of FORD MOTOR COMPANY

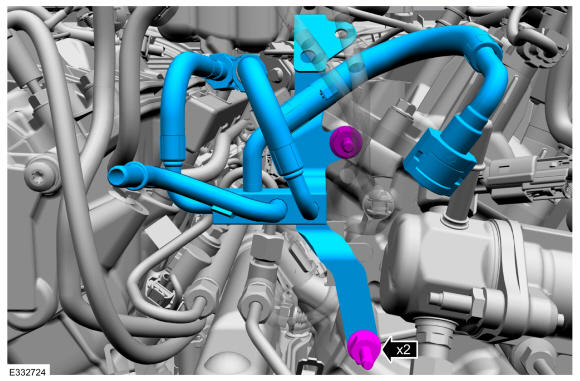

Install the fuel supply manifold, then install and tighten the retainers.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

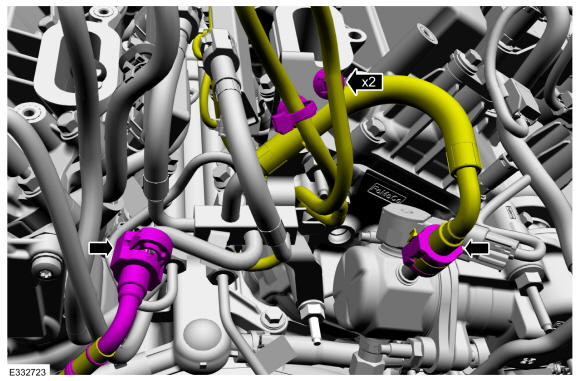

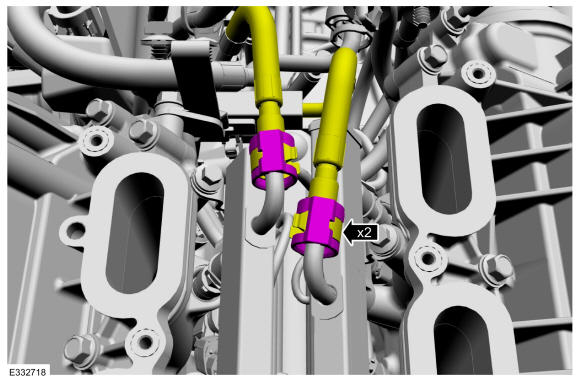

Connect the fuel supply quick connect couplings, then attach the wire harness retainers. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Connect the quick release couplings. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.

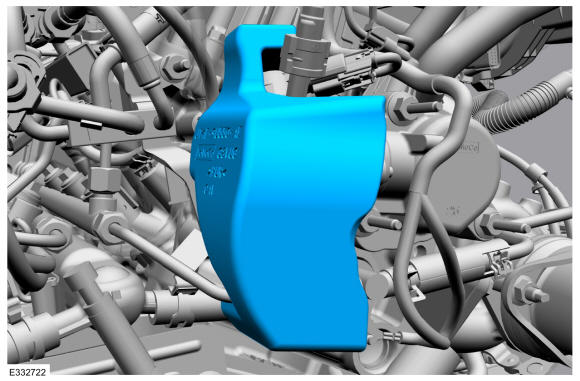

Install the fuel injection pump noise insulator.

Courtesy of FORD MOTOR COMPANY

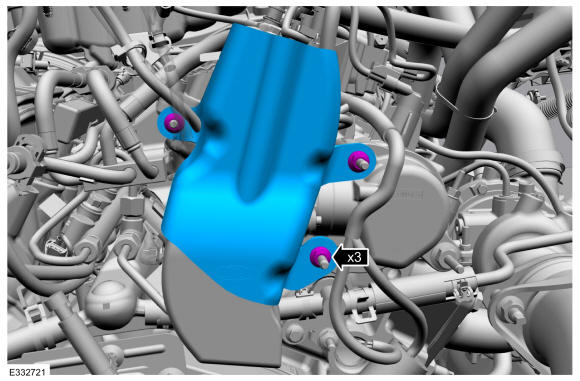

Install the high-pressure fuel pump shield, then install and tighten the retainers.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

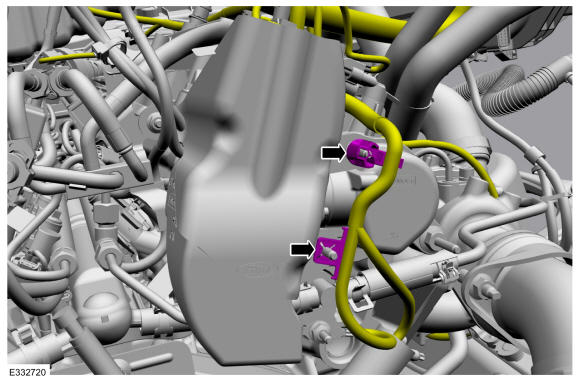

Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

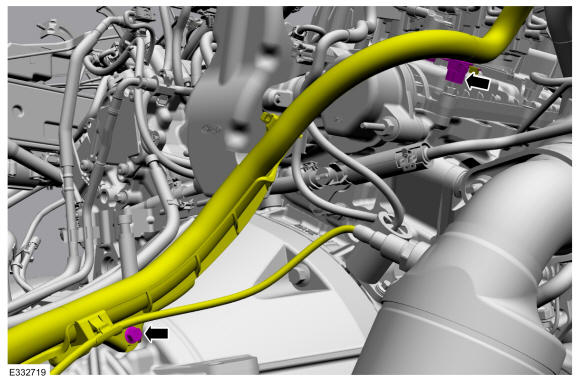

Attach the harness retainer, then install and tighten the bolt.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Install the intake manifold. Refer to: Intake Manifold .
Connect the battery negative cable. Refer to: Battery Disconnect and Connect .
Pressurize the fuel system. Refer to: Fuel System Pressure Release .
