Fuel System Pressure Check

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

GFD560086Courtesy of FORD MOTOR COMPANY
 310-D009 (D95L-7211-A) Fuel Pressure Test Kit

Check

NOTE: This Fuel System Pressure Check is for the low pressure side of the system.
  1. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 2.7L EcoBoost (238kW/324PS) .

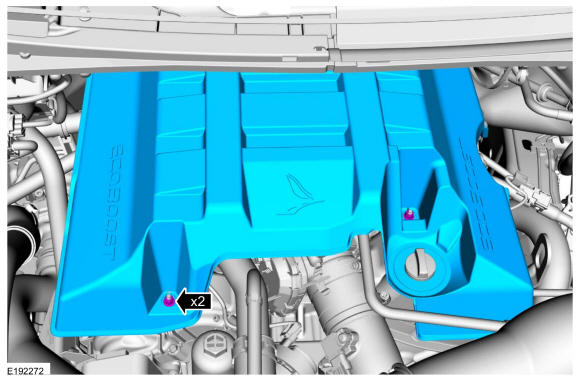

  3. If equipped. Remove nuts and the engine appearance cover.

    Torque

    : 42 lb.in (4.8 Nm)

    GFD560087Courtesy of FORD MOTOR COMPANY
  4. NOTE: Some residual fuel may remain in the fuel lines after releasing the fuel system pressure. When disconnecting or removing any fuel lines, carefully drain any residual fuel into a suitable container.

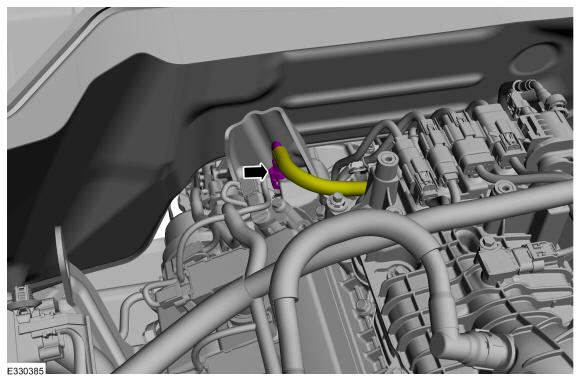

    Disconnect the fuel supply line-to-high pressure pump quick release coupling. Refer to: Quick Release Coupling .

    GFD560088Courtesy of FORD MOTOR COMPANY

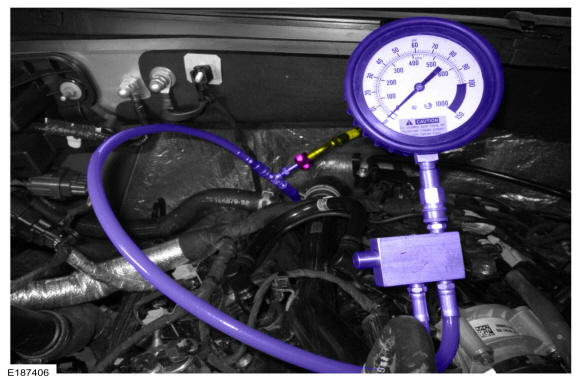

  5. Install the Fuel Pressure Test Kit between the fuel supply line and the high pressure pump.

    Use Special Service Tool: 310-D009 (D95L-7211-A) Fuel Pressure Test Kit.

    GFD560089Courtesy of FORD MOTOR COMPANY
  6. NOTE: The Fuel Pump (FP) control module electrical connector was previously disconnected to release the fuel system pressure and must be reconnected to test the fuel system pressure.

    Reconnect the Fuel Pump (FP) control module electrical connector.

  7. Reconnect the battery ground cable. Refer to: Battery Cables - 2.7L EcoBoost (238kW/324PS) .
  8. NOTE: Carry out a Key ON Engine OFF (KOEO) visual inspection for fuel leaks prior to completing the fuel system pressure test.

    Test the fuel system pressure to make sure it is within the specified range. For additional information, refer to SPECIFICATIONS .

  9. After completion of the fuel system pressure test, disconnect the battery ground cable, open the drain valve on the Fuel Pressure Test Kit and release any residual fluid into an appropriate container. Refer to: Battery Cables - 2.7L EcoBoost (238kW/324PS) .
  10. Remove the Fuel Pressure Test Kit by reversing the installation steps.
