Intake Manifold: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
Remove the following items:
1. Refer to: Air Cleaner Outlet Pipe RH .
2. Refer to: Air Cleaner Outlet Pipe LH .
3. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
Follow directions to release the quick release coupling type 3. Remove the crankcase vent tube. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
1. Disconnect the throttle body electrical connector.
2. Disconnect the differential pressure feedback EGR sensor electrical connector.
3. Disconnect the MAP sensor electrical connector.
4. Detach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
1. Follow directions to release the quick release coupling type 19. Disconnect the fuel vapor tube. Refer to: Quick Release Coupling .
2. Follow directions to release the quick release coupling type 1. Disconnect the tube. Refer to: Quick Release Coupling .
3. Follow directions to release the quick release coupling type 3. Disconnect the crankcase vent tube. Refer to: Quick Release Coupling .
- Detach the tube retainer.
Courtesy of FORD MOTOR COMPANY
Detach the wiring harness connector retainers.

Courtesy of FORD MOTOR COMPANY
1. Remove the nut.
  Torque: 53 lb.in (6 Nm)
2. Release the clamps and remove the differential pressure feedback EGR sensor.
Courtesy of FORD MOTOR COMPANY
1. Disconnect the ignition coil-on-plug electrical connector.
2. Detach the wiring harness retainer.
3. Remove the stud bolt and the ignition coil-on-plug.
  Torque: 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the EGR tube bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
1. Remove the EGR tube nuts.
  Torque: 89 lb.in (10 Nm)
2. Disconnect the engine wiring harness electrical connectors.
3. Detach the engine wiring harness retainer.
Courtesy of FORD MOTOR COMPANY
Remove the bolts and the EGR valve assembly.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
- Remove and discard the gasket.
- Clean and inspect all sealing surfaces.
Courtesy of FORD MOTOR COMPANY
Remove and discard the EGR tube gasket.

Courtesy of FORD MOTOR COMPANY
1. Disconnect the EVAP canister purge valve electrical connector.
2. Follow directions to release the quick release coupling type 19. Disconnect the EVAP canister purge valve vapor tube. Refer to: Quick Release Coupling .
3. Remove the EVAP canister purge valve.
Courtesy of FORD MOTOR COMPANY

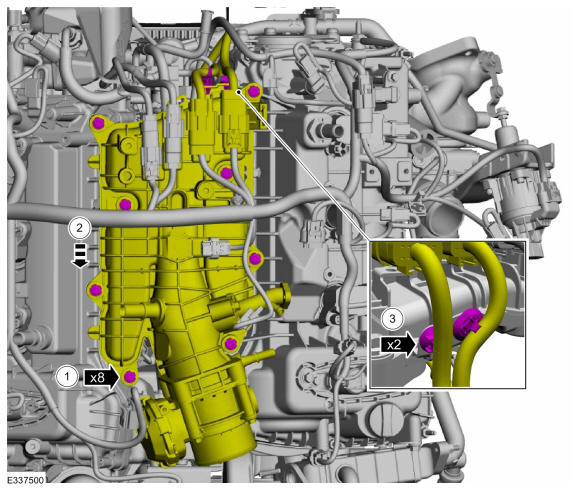

1. Loosen the intake manifold bolts.
2. Position the intake manifold toward the front of the engine.
3. Detach the wiring harness retainers from the rear of the intake manifold.
Courtesy of FORD MOTOR COMPANY

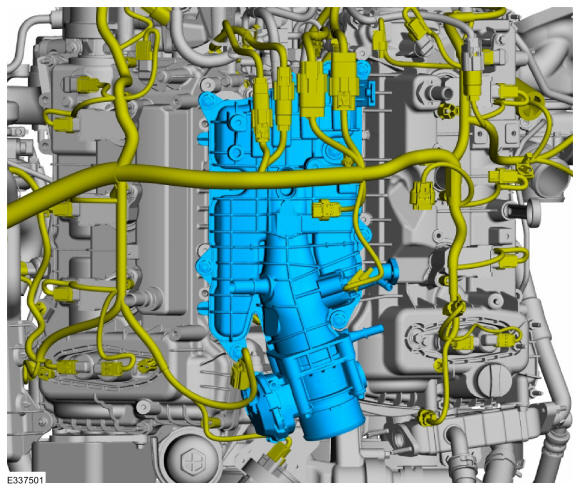

Position the wiring harness aside and remove the intake manifold.

Courtesy of FORD MOTOR COMPANY
- Remove and inspect the gaskets, replace as necessary.
- Clean and inspect all sealing surfaces.

Courtesy of FORD MOTOR COMPANY
