Engine Mount RH: Installation

4x2/4x4

1. NOTE: If a new engine mount is installed, remove the 2 studs prior to positioning the assembly in the vehicle.

   Install the engine mount and the new bolts.

   Torque: 55 lb.ft (75 Nm)

   Courtesy of FORD MOTOR COMPANY

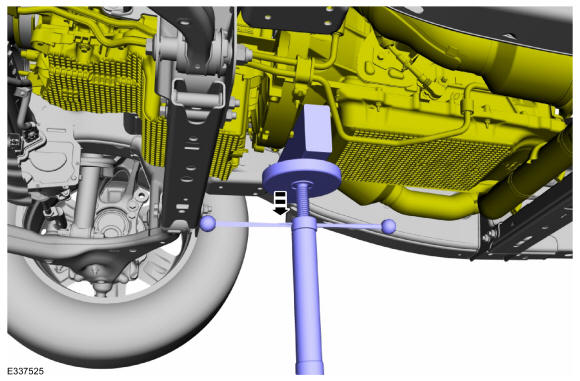

2. 1. Using the adjustable stand, lower the engine to the installed position. Use the General Equipment: Vehicle/Axle Stands
   2. Remove the stand.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
   NOTE: Apply threadlock to the stud threads prior to installation.

   Install the engine mount studs.

   Material

   : Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

   Torque: 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

4. NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

   Install the new engine mount nuts.

   Torque: 111 lb.ft (150 Nm)

   Courtesy of FORD MOTOR COMPANY

5. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Install the new LH engine mount through bolt.

   Torque: 258 lb.ft (350 Nm)

   Courtesy of FORD MOTOR COMPANY

   4x2

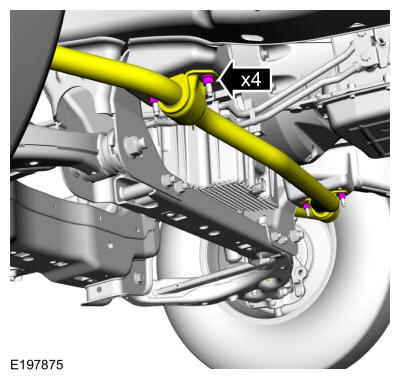

6. Position the stabilizer bar and install the new nuts.

   Torque: 41 lb.ft (55 Nm)

   Courtesy of FORD MOTOR COMPANY

   4x4

7. Install the front drive shaft. Refer to: Front Driveshaft .

   4x2/4x4

8. NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

   Tighten the transmission mount-to-crossmember nuts.

   Torque: 85 lb.ft (115 Nm)

   Courtesy of FORD MOTOR COMPANY

9. • Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.
   • Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

     Torque: 30 lb.ft (40 Nm)

   • Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

     Torque: 30 lb.ft (40 Nm)

   Courtesy of FORD MOTOR COMPANY

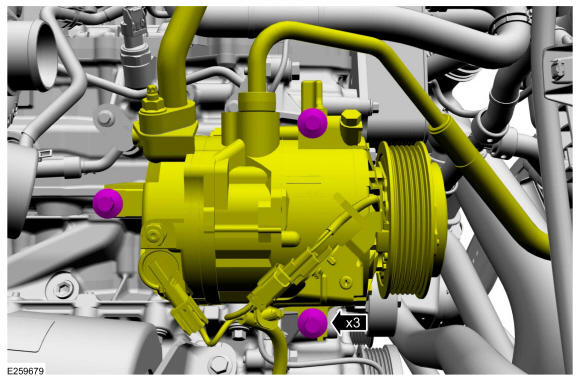

10. Position the A/C compressor and install the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

11. Install the RH fender splash shield. Refer to: Fender Splash Shield .

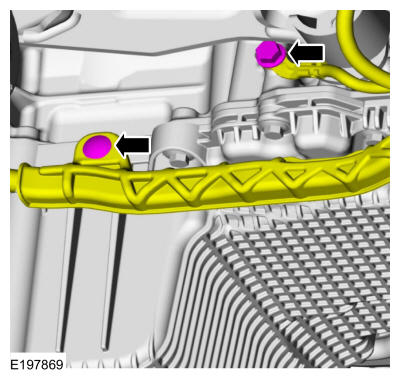

12. 1. Install the pin-type retainer.
    2. Install the ground wire and bolt.

       Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Install the following items:
    1. If equipped, secondary generator. Refer to: Generator - 2.7L EcoBoost (238kW/324PS) .
    2. Accessory drive belt. Refer to: Accessory Drive Belt - Vehicles With: Dual Generators .
    3. Starter motor. Refer to: Starter Motor .

14. NOTE: If equipped.

    Install the skid plate and bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

15. NOTE: If equipped.

    Install the underbody shield and fasteners.

    Torque: 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

16. NOTE: If equipped.

    Install the underbody shield and fasteners.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

17. Install the following items:
    1. CAC (charge air cooler) outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
    2. RHCAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    3. LH (left hand) air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe LH .
    4. RH (right hand) air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .

18. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
19. Start the engine and check the exhaust system for leaks.
