Engine Mount LH: Installation

4x2/4x4

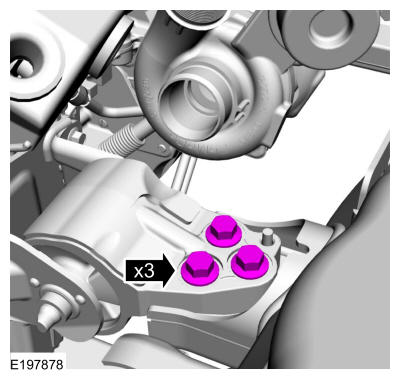

1. Install the engine mount-to-cylinder block bracket and the bolts.

   Torque: 55 lb.ft (75 Nm)

   Courtesy of FORD MOTOR COMPANY

2. NOTE: If removed.

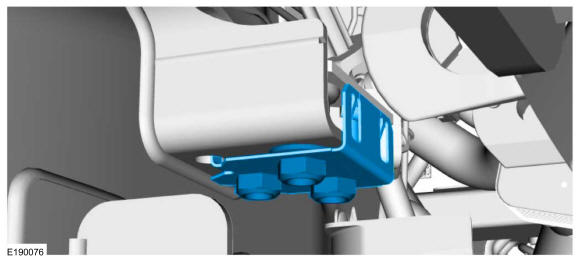

   Install a new engine mount-to-frame nut plate.

   Courtesy of FORD MOTOR COMPANY

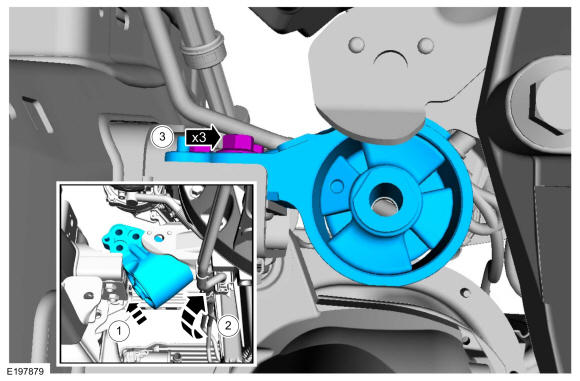

3. 1. Position the LH engine mount into the bracket opening.
   2. Using a twisting motion install the mount.
   3. Hand start the new engine mount-to-frame bolts. Do not tighten at this time.

   Courtesy of FORD MOTOR COMPANY

4. 1. Using the adjustable stand, lower the engine to the installed position. Use the General Equipment: Vehicle/Axle Stands
   2. Remove the stand.

   Courtesy of FORD MOTOR COMPANY

5. Install the new LH engine mount through bolt.
   • Do not tighten at this time.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
   NOTE: Apply threadlock to the stud threads prior to installation.

   Install the engine mount studs.

   Material

   : Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

   Torque: 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

7. NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

   Install the new engine mount nuts.

   Torque: 111 lb.ft (150 Nm)

   Courtesy of FORD MOTOR COMPANY

8. NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

   Tighten the LH engine mount bolts.

   Torque: 129 lb.ft (175 Nm)

   Courtesy of FORD MOTOR COMPANY

9. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

   Tighten the LH engine mount through bolt.

   Torque: 258 lb.ft (350 Nm)

   Courtesy of FORD MOTOR COMPANY

   4x2

10. Position the stabilizer bar and install the new nuts.

    Torque: 41 lb.ft (55 Nm)

    Courtesy of FORD MOTOR COMPANY

    4x4

11. NOTE: Use care when positioning the front axle housing or the vacuum lines to the axle solenoid may become disconnected or damaged.

    Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

12. NOTE: It may be necessary to reposition the axle assembly to prevent interference with the steering components when installing the bolt.

    Install the new upper front axle carrier mounting bushing nut and the bolt finger tight.

    Courtesy of FORD MOTOR COMPANY

13. Install the new axle shaft housing carrier bushing nut and the bolt finger tight.

    Courtesy of FORD MOTOR COMPANY

14. Install the new lower front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

15. Tighten the axle shaft housing carrier bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

16. Tighten the upper front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

17. Remove the stand. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

18. Install the steering gear boot.

    Courtesy of FORD MOTOR COMPANY

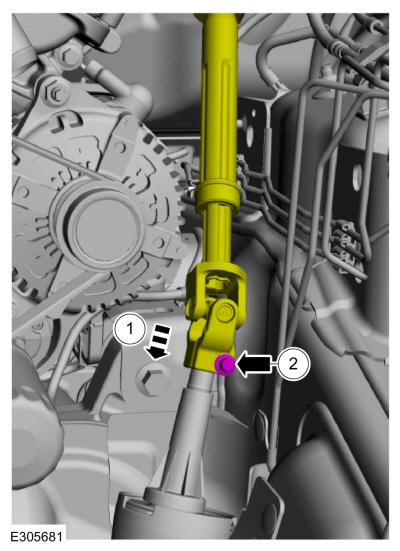

19. 1. Position back the steering column shaft U-joint to the steering gear.
    2. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

       Install a new steering column shaft bolt.

       Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

20. Remove the holding device from the steering wheel.

    Courtesy of FORD MOTOR COMPANY

21. Install the front drive shaft. Refer to: Front Driveshaft .

    4x2/4x4

22. Install the LH heat shield and the bolts.

    Torque: 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

23. NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Tighten the transmission mount-to-crossmember nuts.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

24. • Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.
    • Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 30 lb.ft (40 Nm)

    • Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

25. NOTE: If equipped.

    Install the skid plate and bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

26. NOTE: If equipped.

    Install the underbody shield and fasteners.

    Torque: 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

27. NOTE: If equipped.

    Install the underbody shield and fasteners.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

28. Install the following items:
    1. CAC (charge air cooler) outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
    2. LHCAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    3. LH (left hand) air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe LH .
    4. Air cleaner. Refer to: Air Cleaner .

29. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
30. Start engine and check exhaust system for leaks.
