Cylinder Head RH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new cylinder head gasket.
    GFD552505Courtesy of FORD MOTOR COMPANY
    • Install the cylinder head.

    • Install new cylinder head bolts.

      Torque: Stage 1: 177 lb.in (20 Nm)

      Stage 2: Loosen: 2 turn(s)

      Stage 3: 37 lb.ft (50 Nm)

      Stage 4: 180°

    Fig 1: RH Cylinder Head Tightening Sequence
    GFD552506Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure that a new high-pressure fuel tube is installed.

    1. Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in the chart below.
      G00468730Courtesy of FORD MOTOR CO.
    2. NOTE: In stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (75 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.

      Install the high-pressure fuel tube and tighten the flare nuts finger tight, then tighten the flare nuts in the following 3 stages.

      Torque: Stage 1: Tighten to : 62 lb.in (7 Nm)

      Stage 2: Tighten to : 89 lb.in (10 Nm)

      Stage 3: Tighten an additional : 30°

    GFD552507Courtesy of FORD MOTOR COMPANY

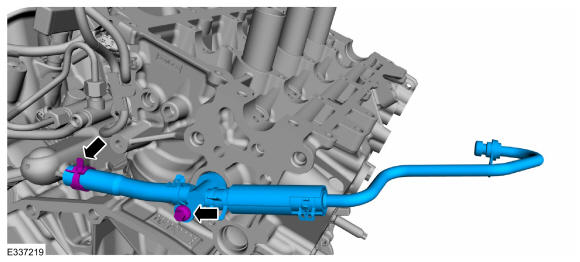

    1. Install the cylinder head to coolant outlet connector hose assembly and the bolt.

      Torque: 89 lb.in (10 Nm)

    2. Connect the coolant hose and the clamp. Use the General Equipment: Hose Clamp Remover/Installer
    GFD552499Courtesy of FORD MOTOR COMPANY

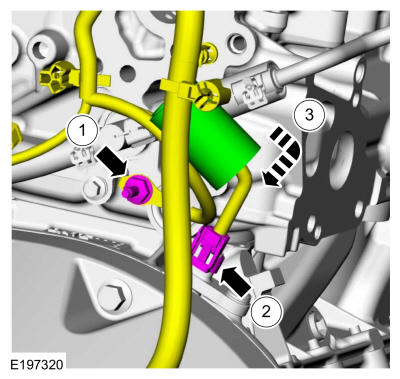

    1. Install the wiring harness ground and the stud bolt.

      Torque: 89 lb.in (10 Nm)

    2. Connect the CKP sensor electrical connector.
    3. Install the CKP sensor electrical connector insulator.
    GFD552508Courtesy of FORD MOTOR COMPANY
  3. Install the following items:

    1. Refer to: Turbocharger RH .
    2. Refer to: Camshaft RH .

  4. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  5. Presurize the fuel system. Refer to: Fuel System Pressure Release .
  6. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
  7. Start and check the exhaust system for leaks.
  8. Road test the vehicle.
