Cylinder Head LH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

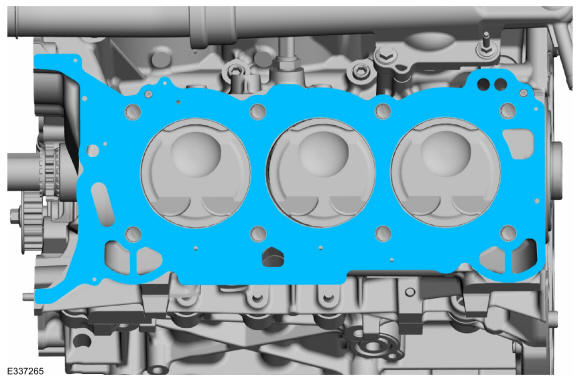

Install a new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
- Install the cylinder head.
- Install new cylinder head bolts.
  Torque:Stage 1: 177 lb.in (20 Nm)

  Stage 2: Loosen: 2 turn(s)

  Stage 3: 37 lb.ft (50 Nm)

  Stage 4: 180°
Fig 1: LH Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY

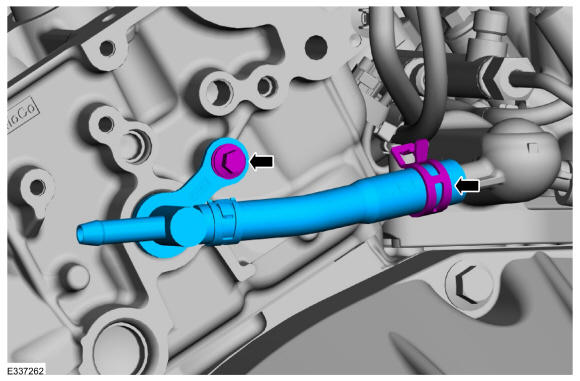

1. Install the cylinder head to coolant outlet connector hose assembly and the bolt.
  Torque: 89 lb.in (10 Nm)
2. Connect the coolant hose and the clamp. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

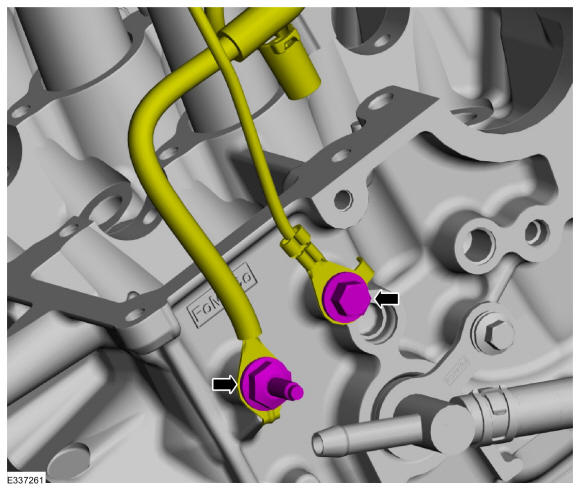

Install the wiring harness grounds, the bolt and the stud bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure that a new high-pressure fuel tube is installed.

Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in the chart below.

Courtesy of FORD MOTOR CO.

NOTE: In stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (75 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.

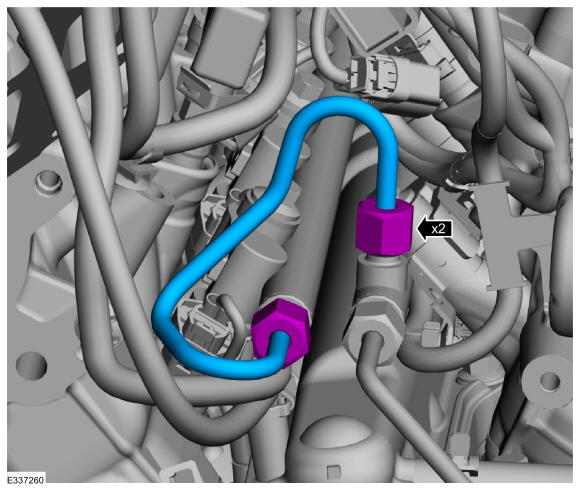

Install the high-pressure fuel tube and tighten the flare nuts finger tight, then tighten the flare nuts in the following 3 stages.

Torque: Stage 1: Tighten to : 62 lb.in (7 Nm)

Stage 2: Tighten to : 89 lb.in (10 Nm)

Stage 3: Tighten an additional : 30°

Courtesy of FORD MOTOR COMPANY

Install the following items:
1. Refer to: Turbocharger LH .
2. Refer to: Camshaft LH .

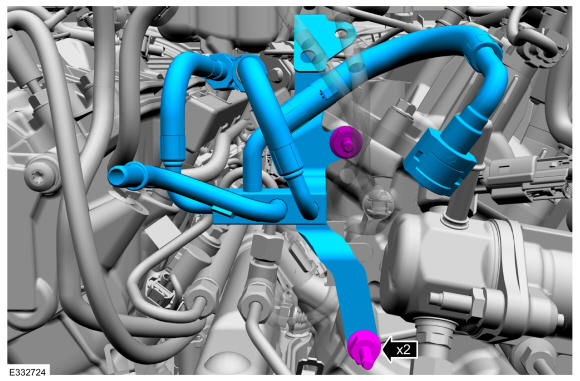

Install the fuel supply manifold, then install and tighten the retainers.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the fuel supply quick connect couplings, then attach the wire harness retainers. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

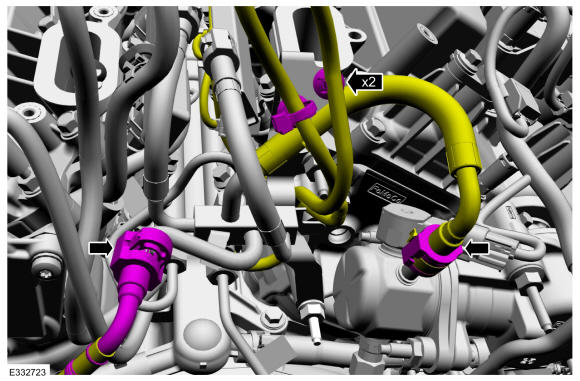

Connect the quick release couplings. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.

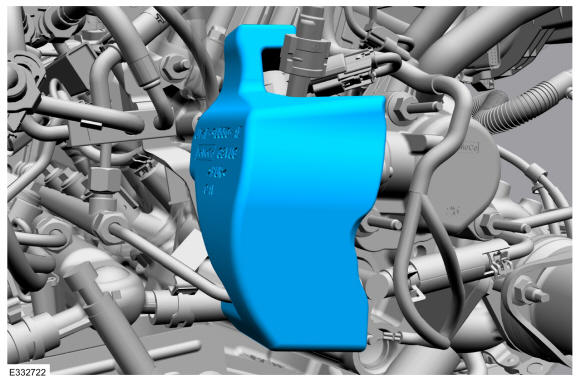

Install the fuel injection pump noise insulator.

Courtesy of FORD MOTOR COMPANY

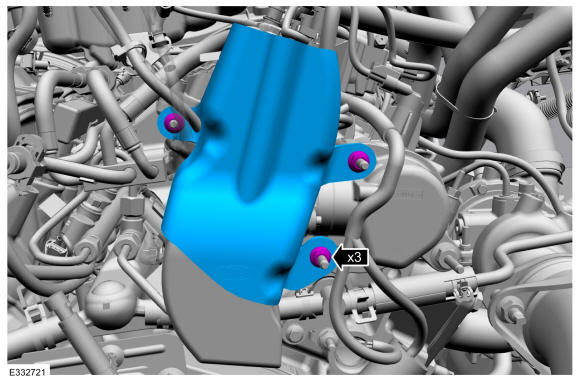

Install the high-pressure fuel pump shield, then install and tighten the retainers.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

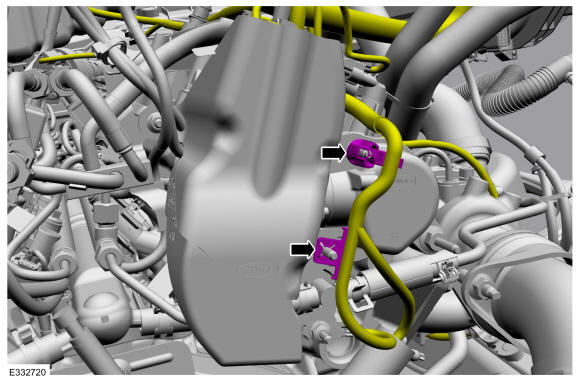

Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
Install the intake manifold. Refer to: Intake Manifold .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
Pressurize the fuel system. Refer to: Fuel System Pressure Release .
Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
Start and check the exhaust system for leaks.
Road test the vehicle.
