Crankshaft Rear Seal with Retainer Plate: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The crankshaft rear seal and retainer plate must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.
1. Apply a 4.5 mm (0.18 in) bead of Motorcraft® High Performance Engine RTV Silicone to the crankshaft rear seal and retainer plate.
  Material

  : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
2. Overlap the beginning and ending of the sealant bead 15 mm (0.59 in).
  Material

  : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
3. Apply 9 mm (0.35 in) beads of Motorcraft® High Performance Engine RTV Silicone that are 10 mm (0.40 in) in length as indicated in the graphic.
  Material

  : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
Courtesy of FORD MOTOR COMPANY
Lubricate the outside surface of the tool with clean engine oil. Use Special Service Tool: 303-1250 Seal Installer, Rear Main.

Courtesy of FORD MOTOR COMPANY
NOTE: The special tool must be inserted into the rear of the crankshaft seal to prevent the seal lip from rolling backwards.
1. Insert the magnetic base of the special tool into the rear opening of the crankshaft seal. Install Special Service Tool: 303-1250 Seal Installer, Rear Main.
2. The magnetic base of the special tool should protrude slightly from the front of the seal plate
Courtesy of FORD MOTOR COMPANY
- Position the special tool and seal plate onto the end of the crankshaft. Use Special Service Tool: 303-1250 Seal Installer, Rear Main.
- Slide the new crankshaft rear seal and retainer plate onto the crankshaft and into the installed position.
Courtesy of FORD MOTOR COMPANY
Install the crankshaft rear seal retainer plate bolts. Remove Special Service Tool: 303-1250 Seal Installer, Rear Main.
Torque: 89 lb.in (10 Nm)

Fig 1: Crankshaft Rear Seal Retainer Plate Tightening Sequence
Courtesy of FORD MOTOR COMPANY
1. Install the CKP sensor and the bolt.
  Torque: 89 lb.in (10 Nm)
2. Connect the CKP sensor electrical connector.
3. Position the CKP sensor electrical connector insulator.
Courtesy of FORD MOTOR COMPANY

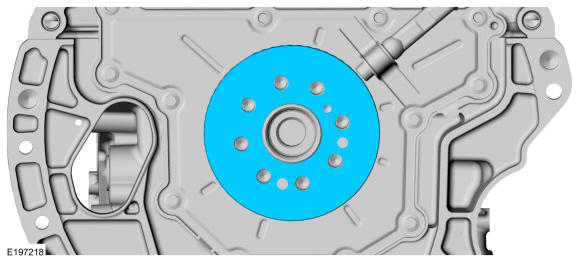

Install the crankshaft sensor ring.

Courtesy of FORD MOTOR COMPANY
Install the flexplate. Refer to: Flexplate .
Road test the vehicle.
