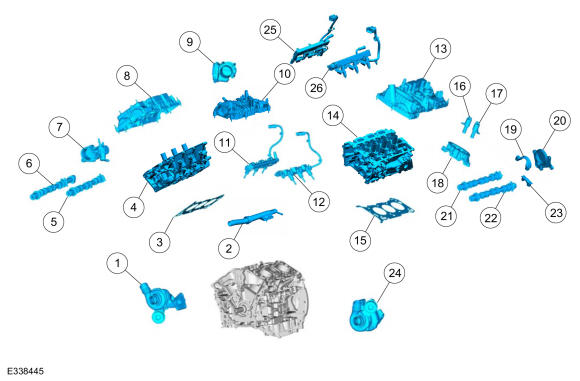

Exploded View Of Engine Upper Components
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6K682 | RH turbocharger |
| 2 | 8592 | Coolant outlet connector pipe |
| 3 | 6051 | RH cylinder head gasket |
| 4 | 6049 | RH cylinder head |
| 5 | 6250 | RH intake camshaft |
| 6 | 6250 | RH exhaust camshaft |
| 7 | 9D376 | High pressure fuel pump |
| 8 | 6582 | RH valve cover |
| 9 | 9F991 | Throttle body |
| 10 | 9424 | Intake manifold |
| 11 | 9F797 | RH Fuel rail (direct injection) |
| 12 | 9F797 | LH Fuel rail (direct injection) |
| 13 | 6582 | LH valve cover |
| 14 | 6049 | LH cylinder head |
| 15 | 6051 | LH cylinder head gasket |
| 16 | 6C524 | Intake variable Camshaft Timing (VCT) solenoid (2 required) |
| 17 | 6C525 | Exhaust variable Camshaft Timing (VCT) solenoid (2 required) |
| 18 | -- | Camshaft bearing cap (part of 6049) (2 required) |
| 19 | -- | Camshaft bearing cap (part of 6049) (2 required) |
| 20 | 6P036 | Cover |
| 21 | 6250 | LH intake camshaft |
| 22 | 6250 | LH exhaust camshaft |
| 23 | -- | Camshaft bearing cap (part of 6049) (12 required) |
| 24 | 6C879 | LH turbocharger |
| 25 | 9H487 | RH Fuel rail (port injection) |
| 26 | 9H487 | LH Fuel rail (port injection) |
