Engine - Overview: Overview
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
The 2.7L Gasoline Turbocharged Direct Injection (GTDI) (4V) is a V-6 engine with the following features:
- Interference design engine
- Dual overhead camshafts
- Four valves per cylinder
- Gasoline Turbocharged Direct Injection (GTDI)
- SFI
- Composite intake manifold
- Aluminum cylinder heads
- Compacted graphite iron cylinder block
- Twin independent variable cam timing (Ti-VCT)
- An electronic ignition system with 6 ignition coils
- Variable displacement oil pump
Engine Identification
For quick identification, refer to the safety certification decal.
The decal is located on the LH front door lock face panel.

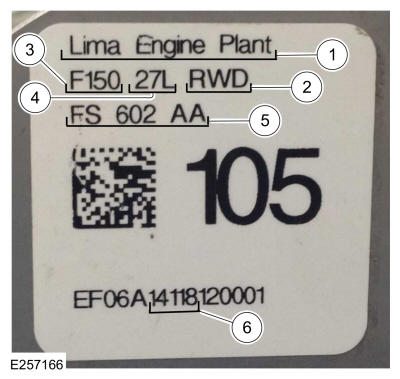

Engine Code Information Label
The engine code information label, located on the rear of the vacuum pump and on the LH valve cover, contains the following:
| Item | Description |
|---|---|
| 1 | Engine plant |
| 2 | Drive type |
| 3 | Vehicle line |
| 4 | Engine displacement |
| 5 | Engine part number |
| 6 | Engine build date YYDDD (DDD=Julian Date [001-365]) |

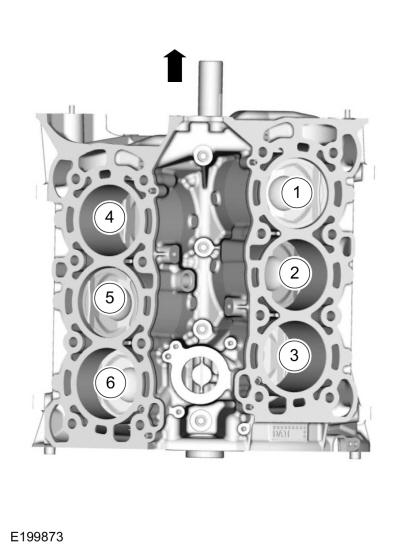

Engine Cylinder Identification
