Crankshaft End Play
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION
General Equipment
| Dial indicator |
| Dial indicator fixture |
-
NOTE: Refer to the appropriate Engine System article for the specification.
- Position the crankshaft to the rear of the cylinder block.

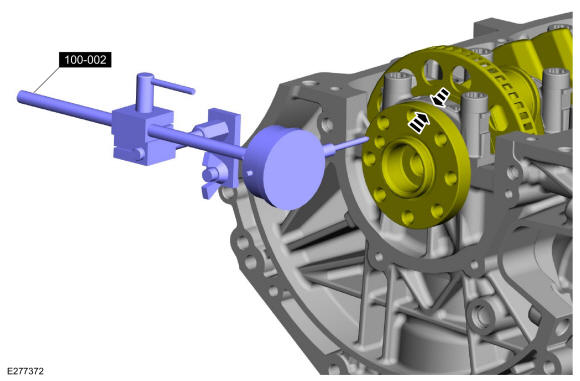

- Zero the Dial Indicator Gauge with Holding Fixture.Dial Indicator
- Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
- If the crankshaft end play exceeds the specified range, install new parts as necessary.
