Passive Anti-Theft System (PATS) Rear Antenna: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the appropriate loadspace trim panel. Refer to: Loadspace Trim Panel - Regular Cab . Refer to: Loadspace Trim Panel - Crew Cab/Super Cab .

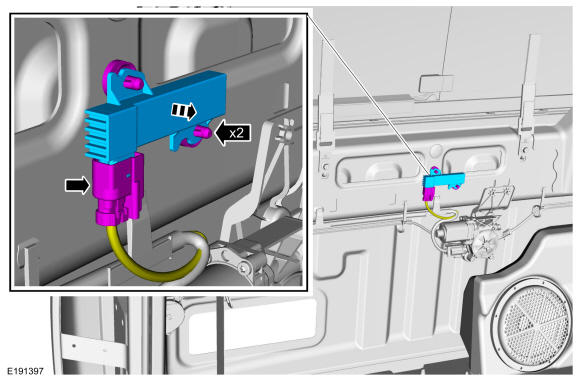

- Disconnect the electrical connector, release the clips and remove the rear PATS antenna.
