Passive Anti-Theft System (PATS) Center Antenna - Vehicles With: Center Console: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

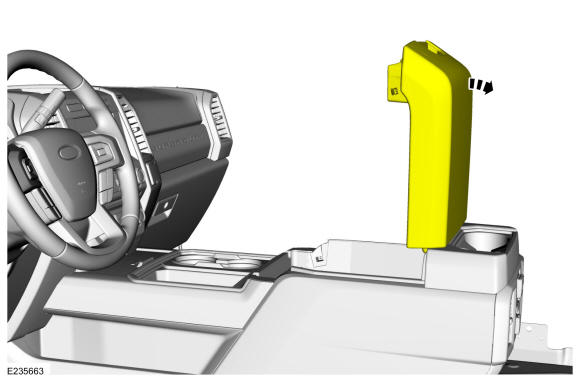

  1. Open the floor console lid.
    GFD206085Courtesy of FORD MOTOR COMPANY

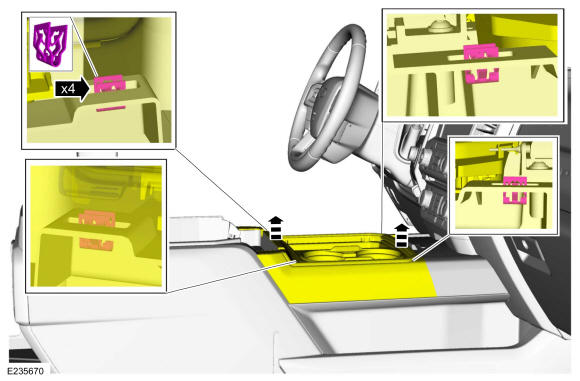

  2. Release the floor console upper trim panel clips.
    GFD206086Courtesy of FORD MOTOR COMPANY
  3. Remove the floor console upper trim panel.

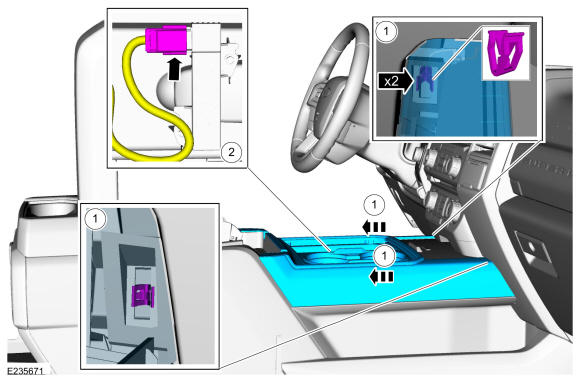

    1. Release the trim panel front clips.
    2. Disconnect the center PATS antenna electrical connector.

    GFD206087Courtesy of FORD MOTOR COMPANY

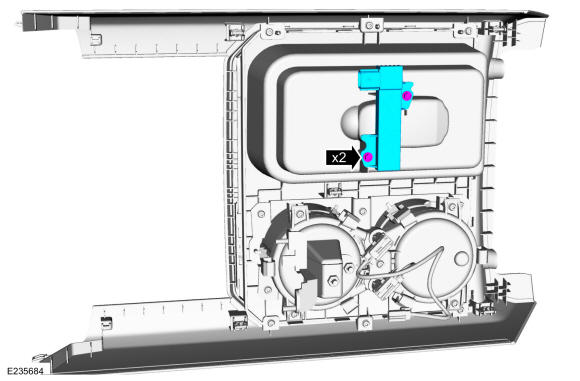

  4. Remove the bolts and the center PATS antenna.
GFD206088Courtesy of FORD MOTOR COMPANY
