Trailer Module (TRM): Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary if the TRM (trailer module) is being replaced.

Using a diagnostic scan tool, begin the PMI process for the TRM following the on-screen instructions.

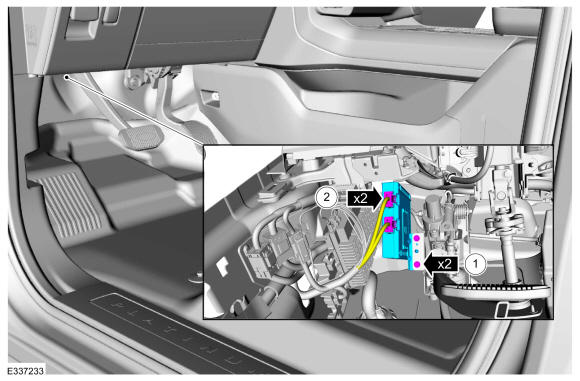

Remove the TRM.
1. Remove the bolts.
  Torque: 106 lb.in (12 Nm)
2. Disconnect the TRM electrical connectors.

Courtesy of FORD MOTOR COMPANY
