Spot Lamp Switch: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Release the clips to open the access panel, remove the bolts and the access panel.
Torque: 22 lb.in (2.5 Nm)
- Release the clips and remove the lower steering column trim panel.
- Release the clips and remove the LH instrument panel trim panel. Use the General Equipment: Interior Trim Remover
- Release the clips and remove the LH register bezel. Use the General Equipment: Interior Trim Remover
- Remove the two bolts and the LH register.
Torque: 22 lb.in (2.5 Nm)
- Remove the bolt and gently release the lower dash panel clips and position out the panel enough to access the rear of the spot lamp switch.
Torque: 22 lb.in (2.5 Nm)

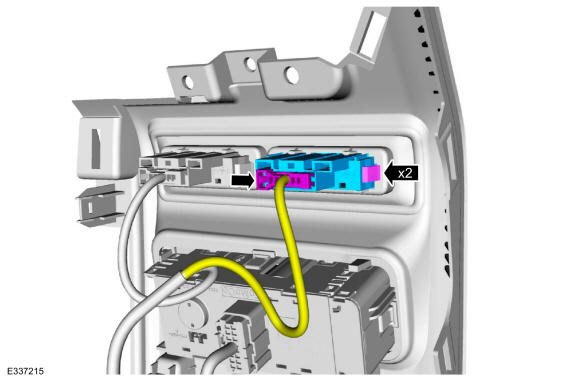

- Disconnect the electrical connector, release the clips and remove the spot lamp switch.
