Rear Lamp Bulb: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Bulbs are not serviceable on LED (light emitting diode) rear lamp assemblies. Replace the rear lamp assembly.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

Remove the rear lamp assembly. Refer to: Rear Lamp Assembly .

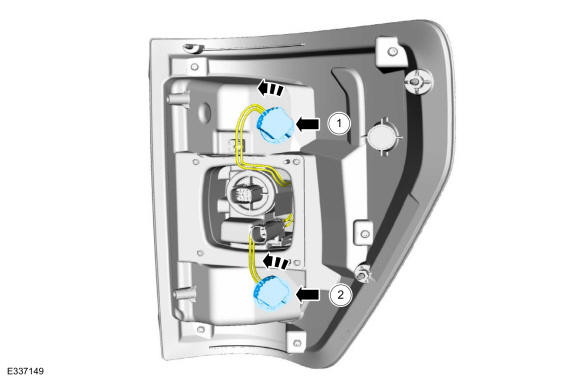

Rear lamp assemblies equipped with two incandescent bulbs
Remove the affected incandescent bulb socket. Rotate the rear lamp assembly bulb socket counter clock-wise to remove.
1. Remove the Stop/Turn/Tail/Sidemarker bulb socket from the rear lamp assembly.
2. Remove the Stop/Turn/Tail bulb socket from the rear lamp assembly.
Courtesy of FORD MOTOR COMPANY
NOTE: Wiring harness shown removed for clarity.

Replace the affected rear lamp assembly bulbs.

Courtesy of FORD MOTOR COMPANY

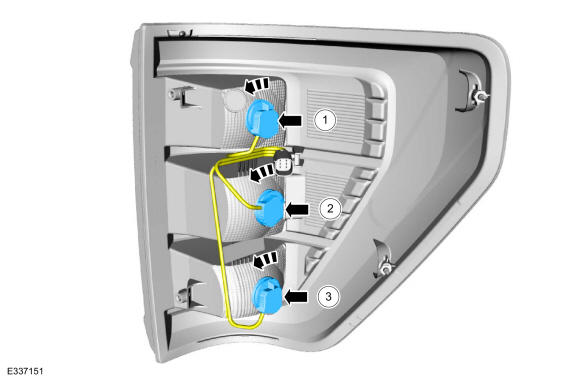

Rear lamp assemblies equipped with three incandescent bulbs
Remove the affected incandescent bulb socket. Rotate the rear lamp assembly bulb socket counter clock-wise to remove.
1. Remove the Amber Turn Signal bulb socket.
2. Remove the Stop/Tail/Sidemarker bulb socket.
3. Remove the Backup bulb socket.
Courtesy of FORD MOTOR COMPANY
NOTE: Wiring harness shown removed for clarity.

Replace the affected rear lamp assembly bulb.

Courtesy of FORD MOTOR COMPANY
