Rear Lamp Assembly: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles

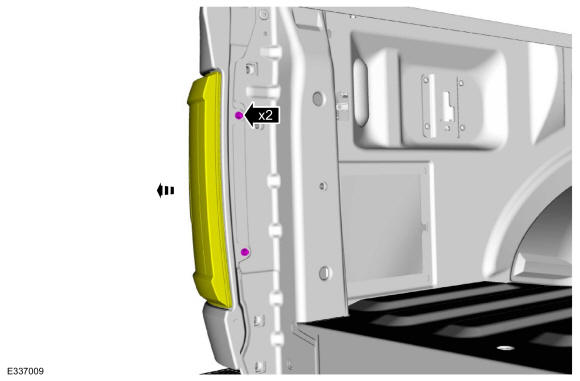

- Remove the screws and position the rear lamp assembly aside.
Torque: 48 lb.in (5.4 Nm)
Vehicles with incandescant lamps
-

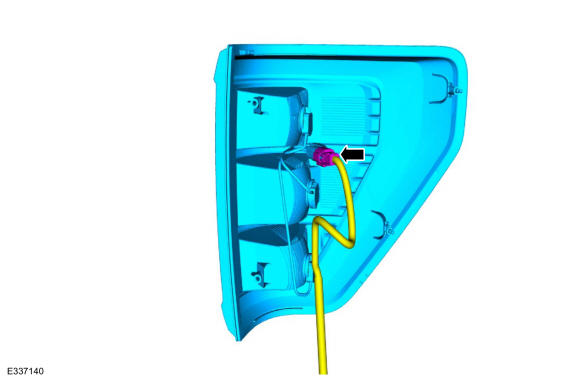

NOTE: Rear lamp assembly with one connector shown.
Disconnect the rear lamp assembly electrical connector.
-

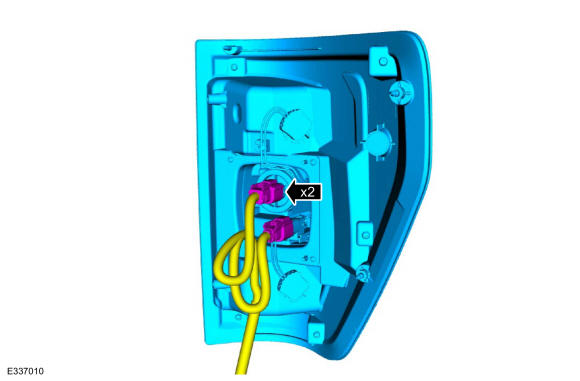

NOTE: Rear lamp assembly with two connectors shown.
Disconnect the rear lamp assembly electrical connectors.

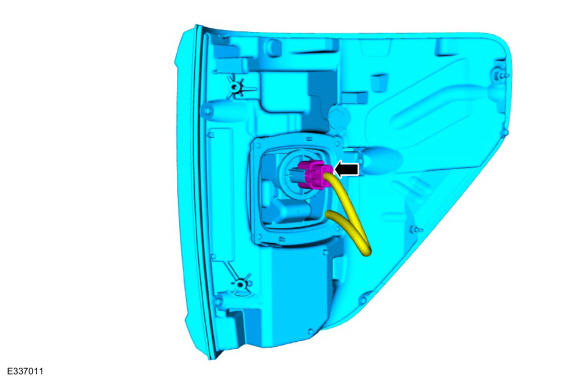

Vehicles with LED lamps
- Disconnect the rear lamp assembly electrical connector.
