Light Emitting Diode (LED) Control Module: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the headlamp assembly. Refer to: Headlamp Assembly .

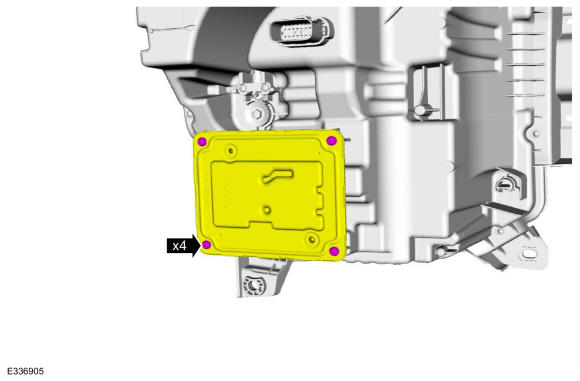

- Remove the screws and position out the LED control module.

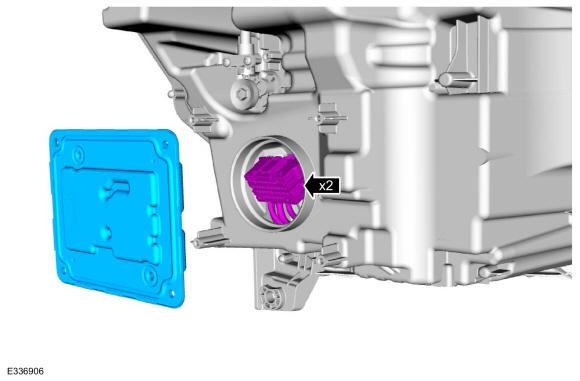

- Disconnect the electrical connectors and remove the LED control module.
