Headlamp Assembly: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Remove the radiator grille. Refer to: Radiator Grille .

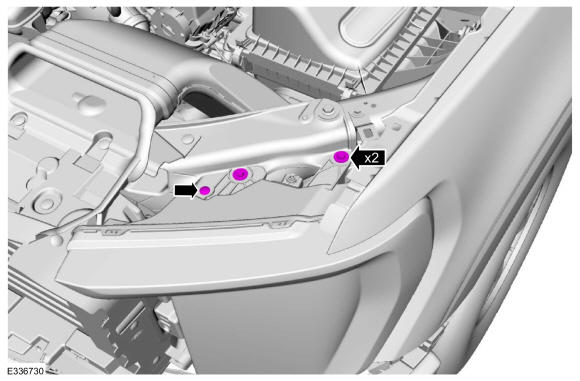

- Remove the upper headlamp bolts and the push pin.
Torque: 36 lb.in (4.1 Nm)

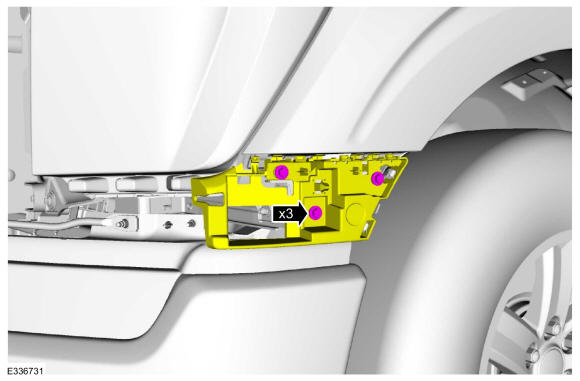

- Remove the bolts and position out the front bumper cover mounting bracket.
-

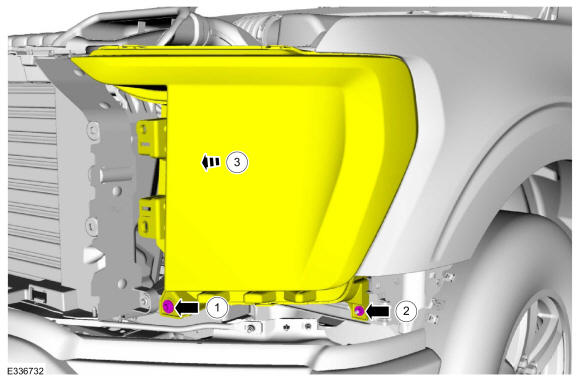

- Remove the lower headlamp bolt.
Torque: 155 lb.in (17.5 Nm)
- Remove the lower headlamp nut.
- Pulling forward, position out the headlamp assembly.
Vehicles with halogen headlamps
- Remove the lower headlamp bolt.

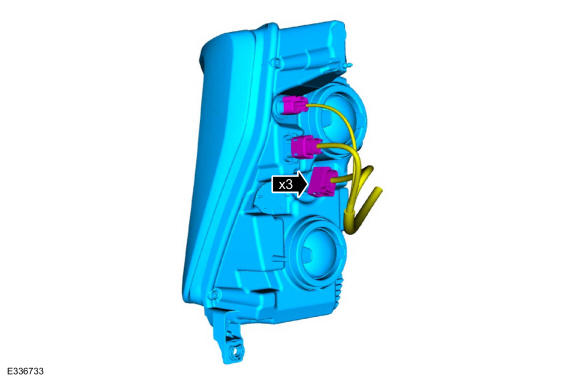

- Disconnect the headlamp electrical connectors and remove the headlamp assembly.
Vehicles with LED headlamps

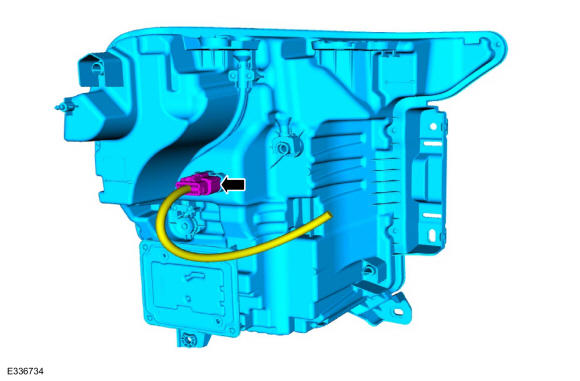

- Disconnect the electrical connector and remove the headlamp assembly.
