Hazard Flasher Switch: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

NOTE: 12 inch screen shown, 10 inch screen is similar.

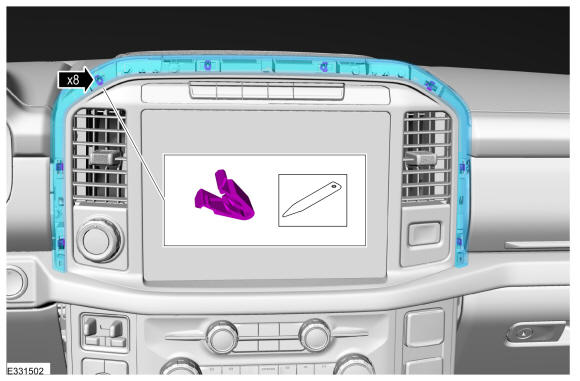

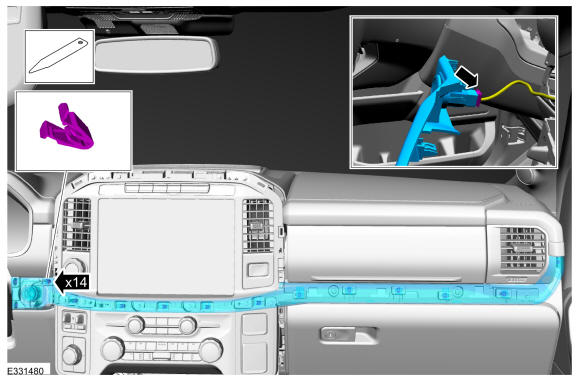

Release the clips and remove the upper centerstack bezel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

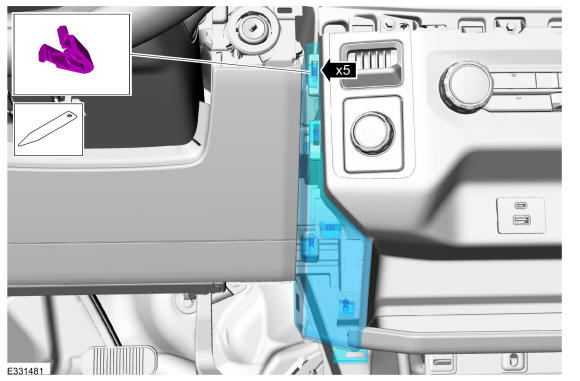

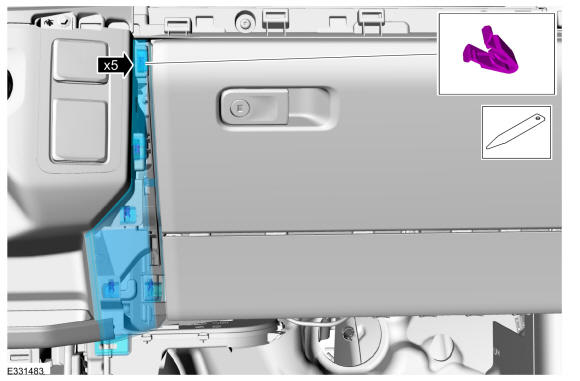

Release the clips and remove the RH instrument center trim panel.
- On vehicles equipped with push button start disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

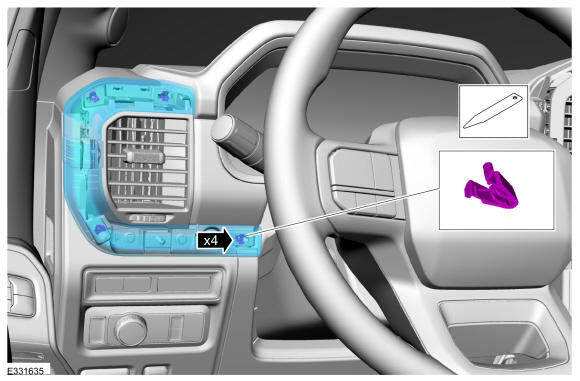

Release the clips and remove the LH instrument center trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

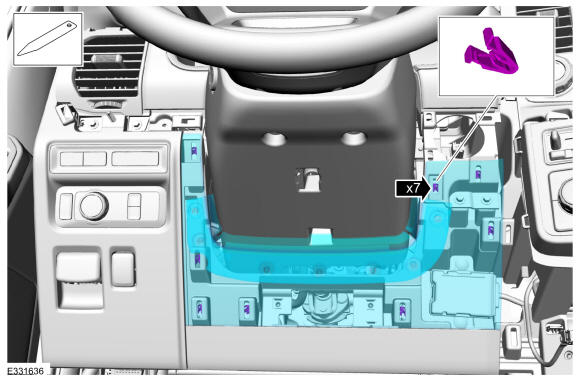

Release the clips and remove the lower steering column closeout panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

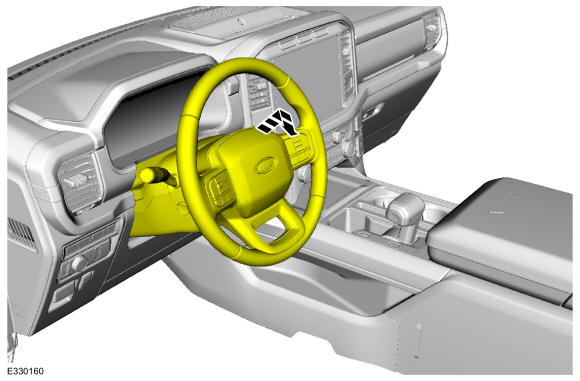

Fully extend and lower the steering column.

Courtesy of FORD MOTOR COMPANY

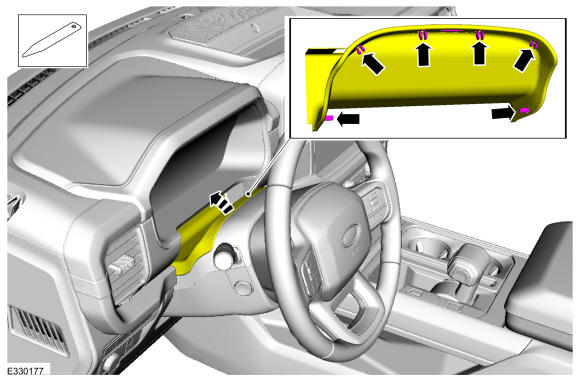

Release the tabs and disconnect the gap hider from the upper steering column shroud. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

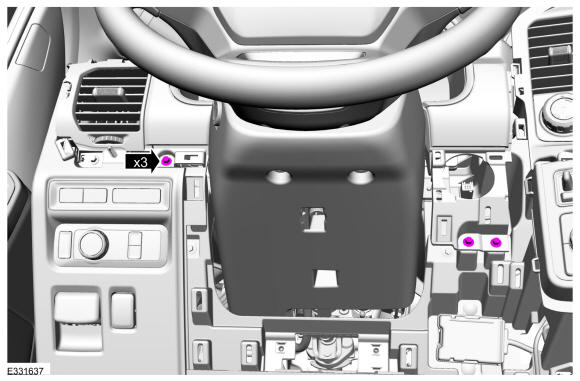

Remove the screws.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

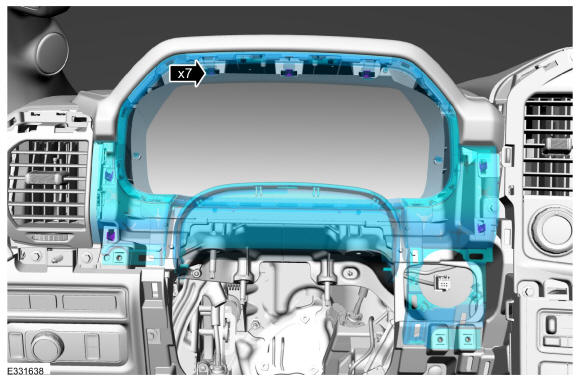

Release the clips and remove the instrument cluster panel bezel.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with a floor console
Remove the floor console. Refer to: Floor Console .

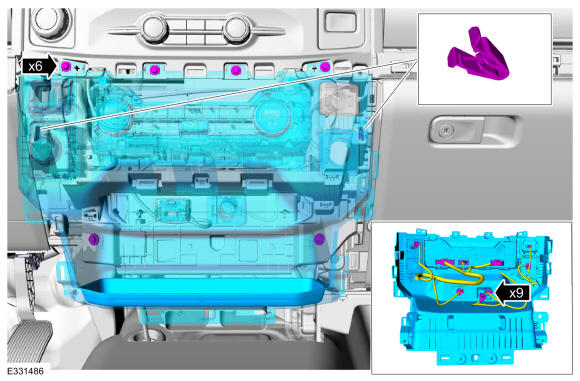

Remove the lower centerstack trim panel.
- Remove the bolts.
  Torque: 22 lb.in (2.5 Nm)
- Release the clips.
- Disconnect the electrical connectors.
Courtesy of FORD MOTOR COMPANY

Vehicles without a floor console

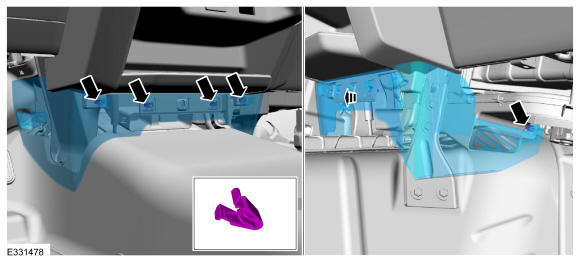

Remove the pin-type retainers and the RH lower instrument panel closeout trim panel.

Courtesy of FORD MOTOR COMPANY

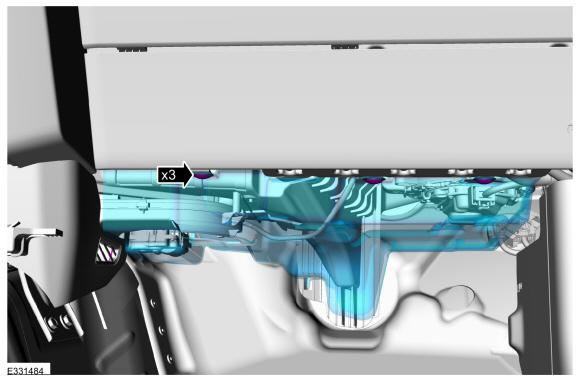

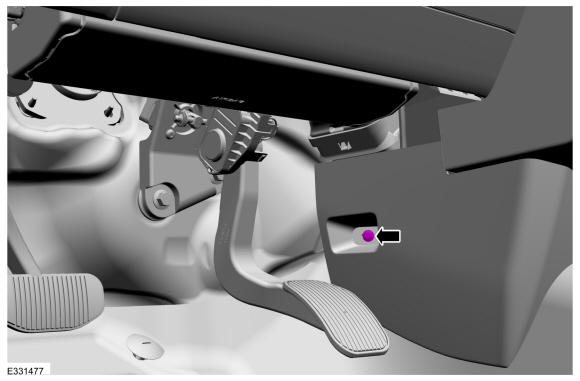

Remove the bolt.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the instrument panel lower trim panel.

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the LH lower centerstack trim panel.

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the RH lower centerstack trim panel.

Courtesy of FORD MOTOR COMPANY

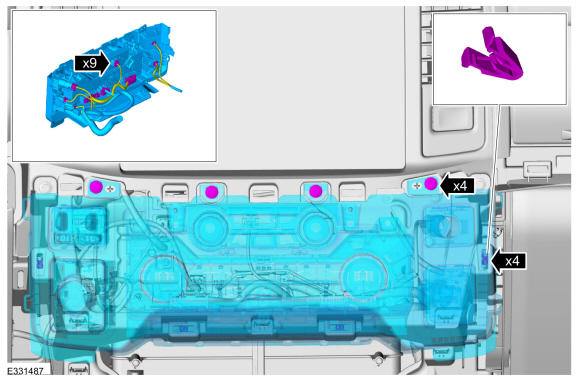

Remove the lower centerstack trim panel.
- Remove the bolts.
  Torque: 22 lb.in (2.5 Nm)
- Release the clips.
- Disconnect the electrical connectors.
Courtesy of FORD MOTOR COMPANY

Vehicles equipped with an instrument panel center speaker
Remove the instrument panel center speaker. Refer to: Instrument Panel Center Speaker .
Remove the screws, release the clips and remove the instrument panel center speaker mounting plate.

Courtesy of FORD MOTOR COMPANY

Vehicles not equipped with an instrument panel center speaker

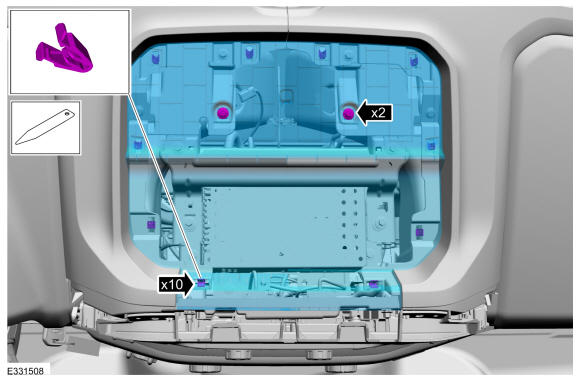

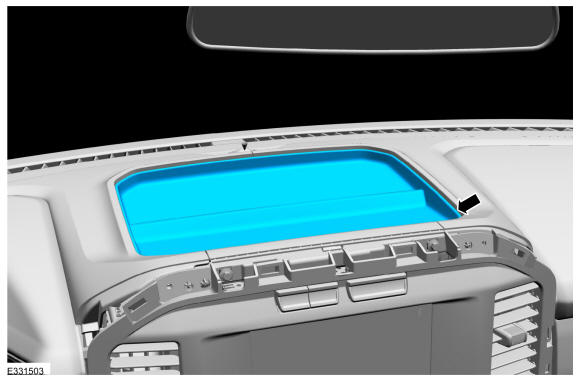

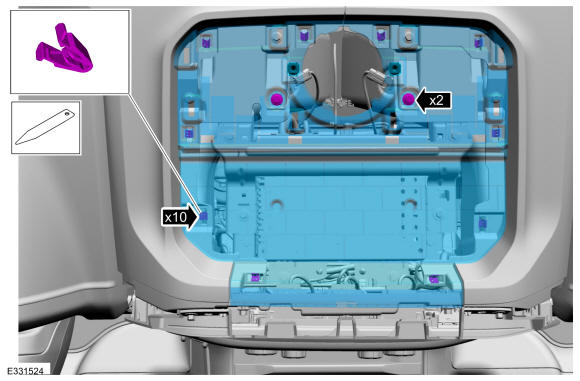

Remove the upper instrument panel tray liner.

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the clips and remove the upper instrument panel tray.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with a 10 inch display

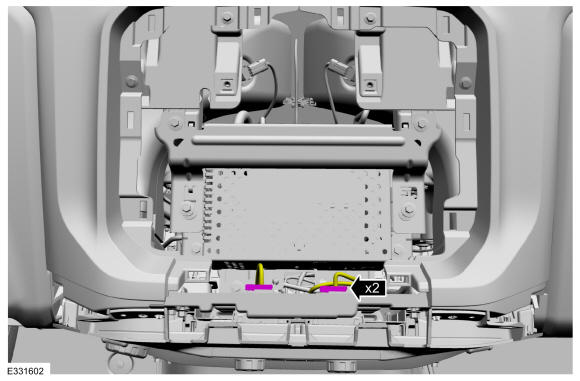

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

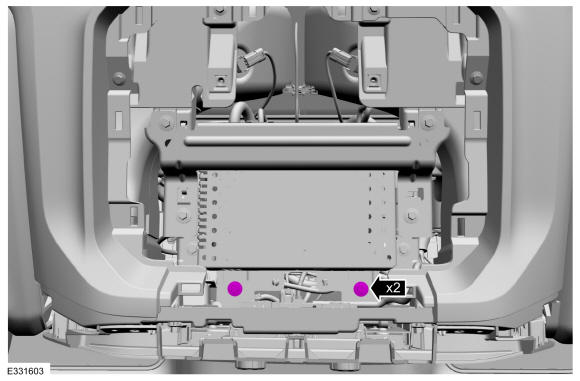

Remove the bolts.
Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY

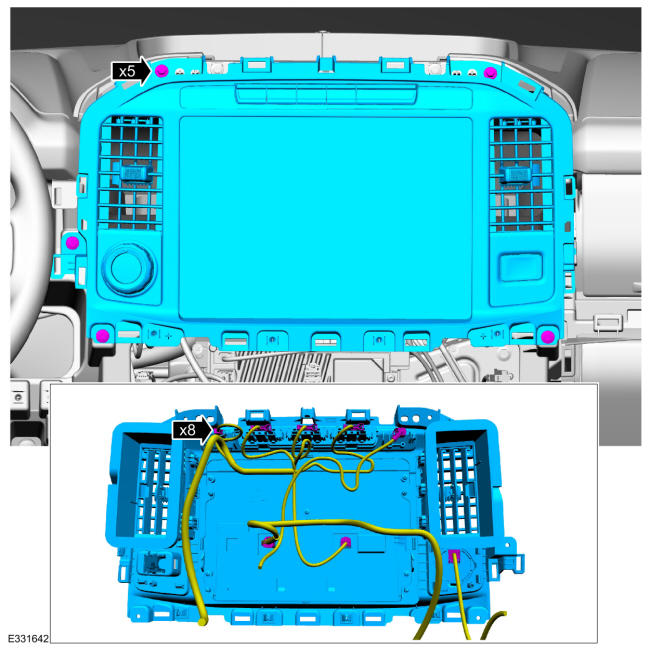

Remove the bolts, disconnect the electrical connectors and remove the centerstack trim panel.
Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: 12 inch screen shown, 10 inch screen is similar.

Release the tabs and remove the hazard flasher switch.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with a 12 inch display
Remove the bolts.
Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY

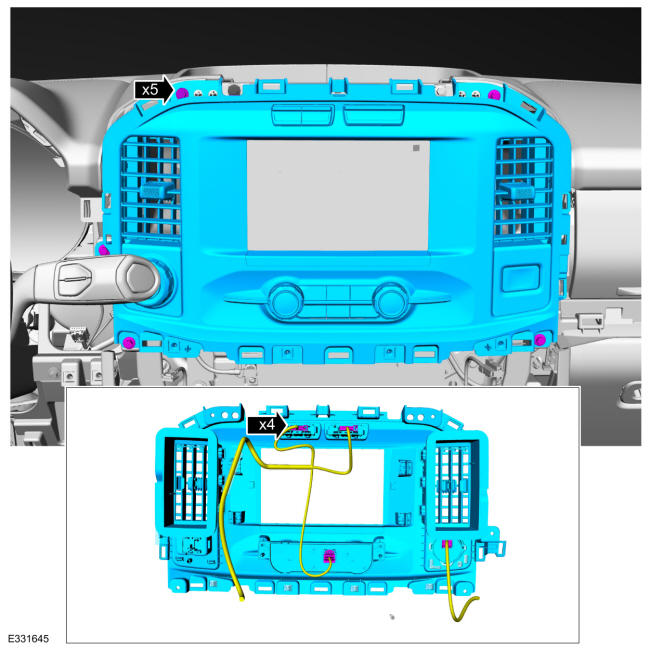

Remove the bolts, disconnect the electrical connectors and remove the FDIM and centerstack trim panel as an assembly.
Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY

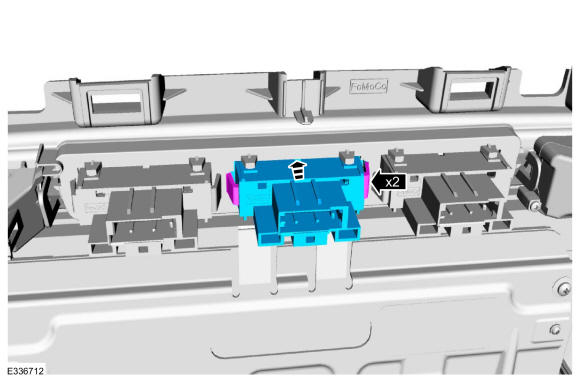

Release the tabs and remove the hazard flasher switch.
