Front Turn Signal Lamp Bulb: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH (left hand) side shown, RH (right hand) similar.
- Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: Tire and wheel are removed for clarity.
Remove the screws and pushpin and position the front of the splash shield back.

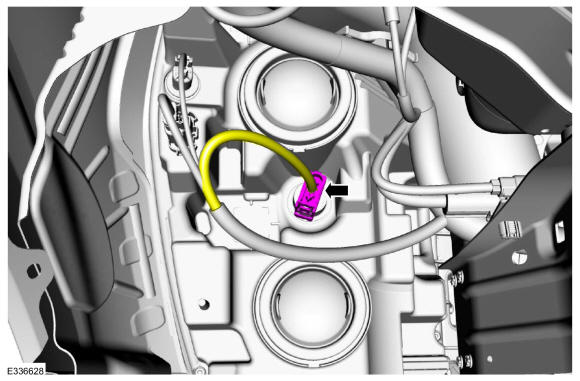

- Disconnect the front turn signal lamp bulb electrical connector.

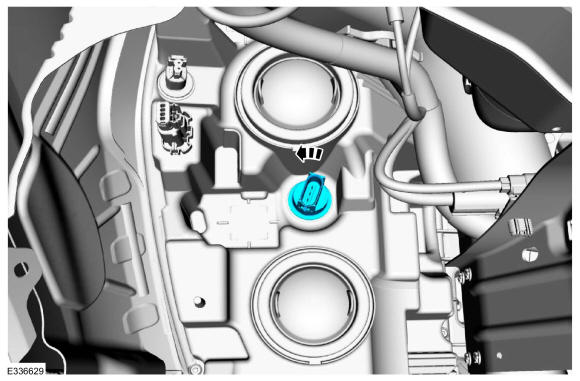

- Rotate the front turn signal lamp bulb socket counter clock-wise and remove.
- Remove the front turn signal lamp bulb.
