Front Fog Lamp: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH (left hand) side shown, RH (right hand) similar.

Remove the front bumper. Refer to: Front Bumper .
If equipped, remove the bolts and position back the radar assembly.

Courtesy of FORD MOTOR COMPANY

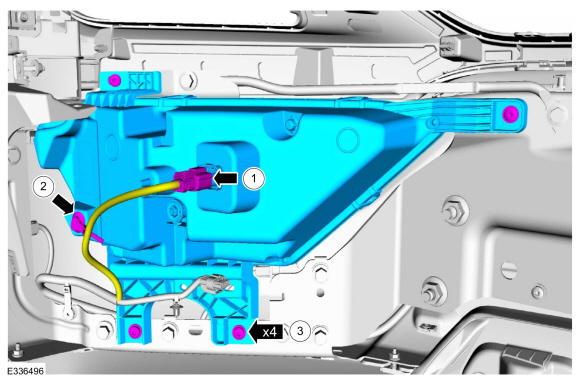

Remove the front fog lamp.
1. Disconnect the front fog lamp electrical connector.
2. Detach the wire harness retainer.
3. Remove the bolts and the front fog lamp assembly.
  Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY
