Thermostatic Expansion Valve Manifold and Tube Assembly - 5.0L 32V Ti-VCT: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in the appropriate Climate Control System article.
Remove the radiator grille. Refer to: Radiator Grille .
Remove the retainers and position the RH splash shield aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

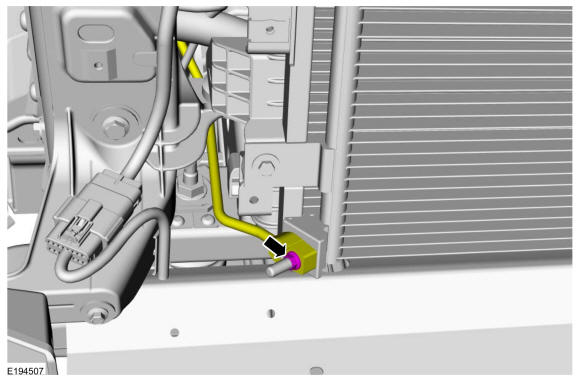

Remove the thermostatic expansion valve manifold and tube assembly nut and disconnect the fitting.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the battery tray. Refer to: Battery Tray .

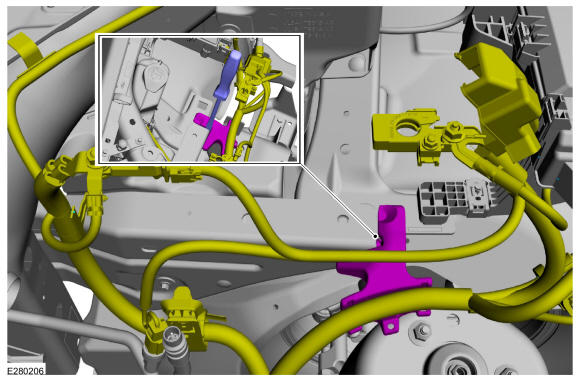

Release the mounting clip and position aside the wiring harness routing bracket. Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY

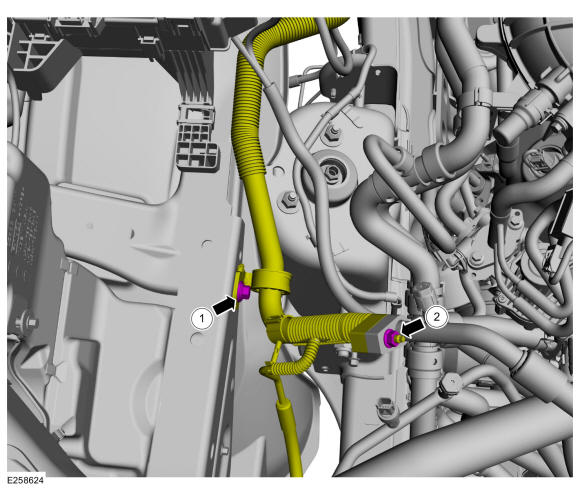

1. Remove the thermostatic expansion valve manifold tube assembly bracket retainer.
  Torque: 133 lb.in (15 Nm)
2. Remove the A/C compressor inlet line nut and disconnect the fitting.
  Torque: 133 lb.in (15 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.
Courtesy of FORD MOTOR COMPANY

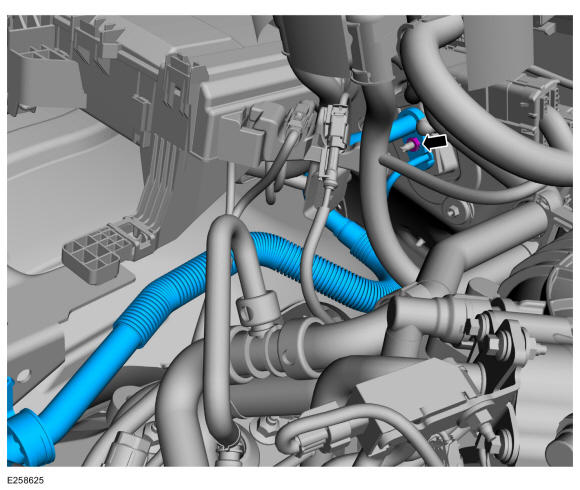

Remove the thermostatic expansion valve manifold and tube assembly nut, disconnect the fitting and remove the thermostatic expansion valve manifold and tube assembly.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
