Passenger Side Register: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Release the clips and remove the center trim panel.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

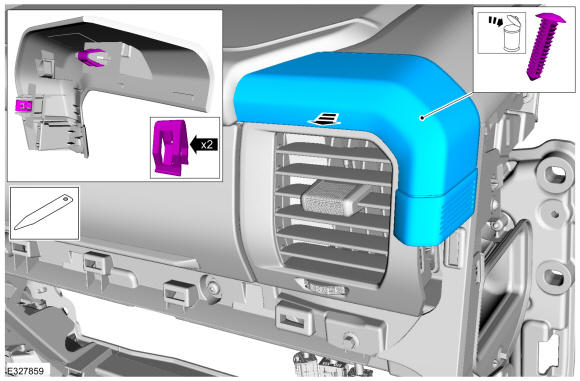

NOTE: The push pin must be replaced each time the bezel is removed.

Release the retainers and remove the RH register bezel.
- Remove and discard the push pin.
Courtesy of FORD MOTOR COMPANY

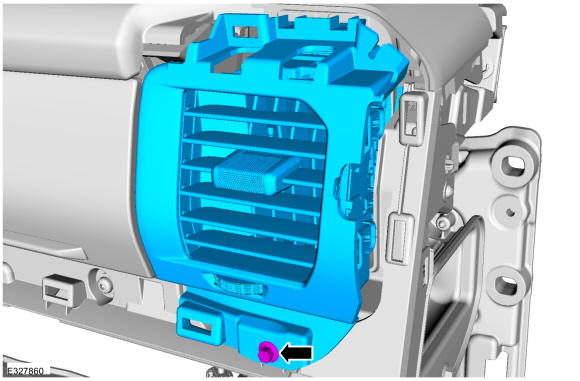

Remove the bolt and the RH register.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Release the tabs and remove the register.

Courtesy of FORD MOTOR COMPANY
