Heating, Ventilation and Air Conditioning (HVAC) Control Module: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the HVAC control module following the on-screen instructions.

Vehicles with floor console
Remove the floor console. Refer to: Floor Console .
All vehicles

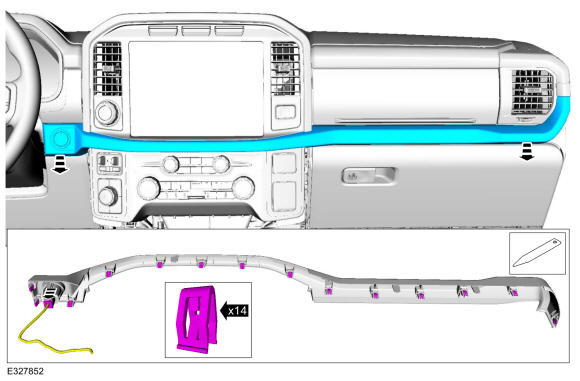

Release the clips and remove the center finish trim.
- Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

Vehicles without floor console

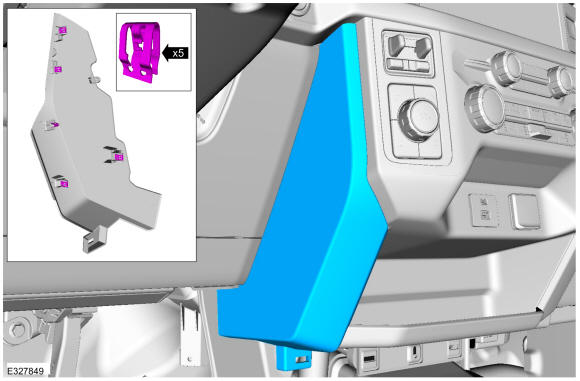

Release the clips and remove the LH center trim panel.

Courtesy of FORD MOTOR COMPANY

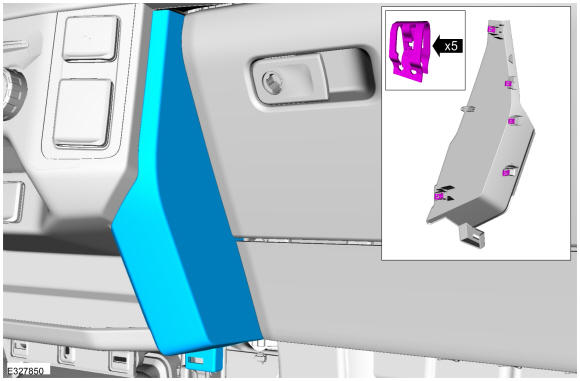

Release the clips and remove the RH center trim panel.

Courtesy of FORD MOTOR COMPANY

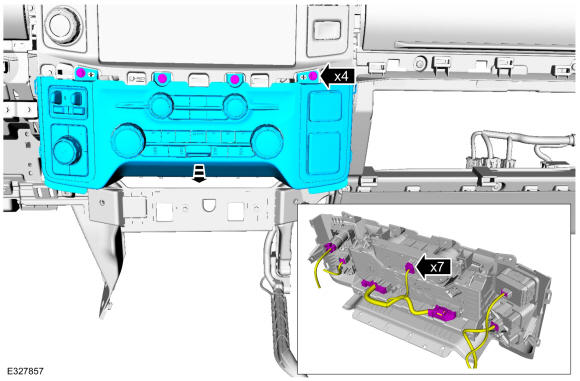

Rewmove the bolts and the lower center instrument panel trim panel.
- Disconnect the electrical connectors.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

Vehicles without floor console

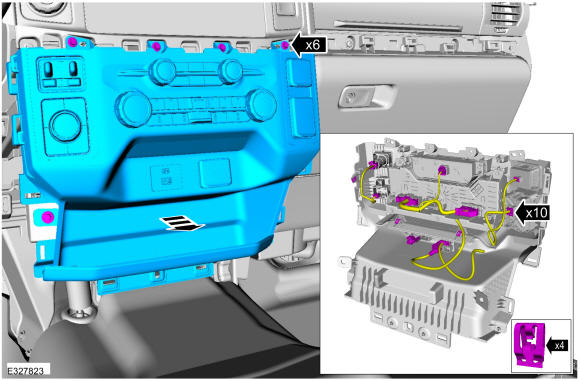

Rewmove the bolts and the lower center instrument panel trim panel.
- Disconnect the electrical connectors.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

All vehicles

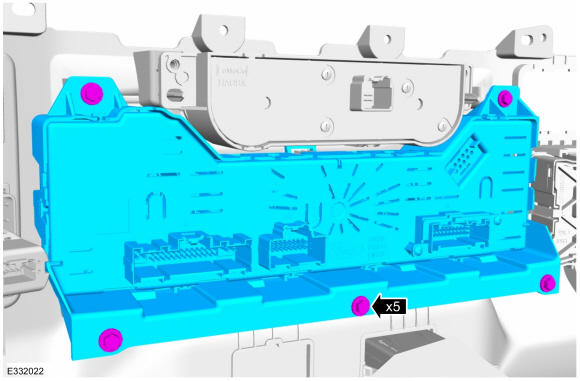

Remove the bolts and the HVAC module.

Courtesy of FORD MOTOR COMPANY
