Cabin Heater Coolant Pump - 2.7L EcoBoost (238kW/324PS): Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Always allow the engine to cool before opening the cooling system. Do not unscrew the coolant pressure relief cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may result in serious personal injury.
Release the cooling system pressure by slowly turning the pressure relief cap between 2 and 3 turns and remove the pressure relief cap.
- Remove the air cleaner outlet pipe RH. Refer to: Air Cleaner Outlet Pipe RH .

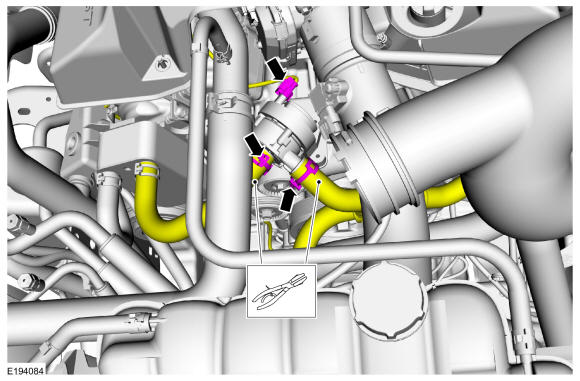

- Disconnect the electrical connector. Release the clamps and disconnect the heater inlet and outlet hoses. Use the General Equipment: Hose Clamp(s)

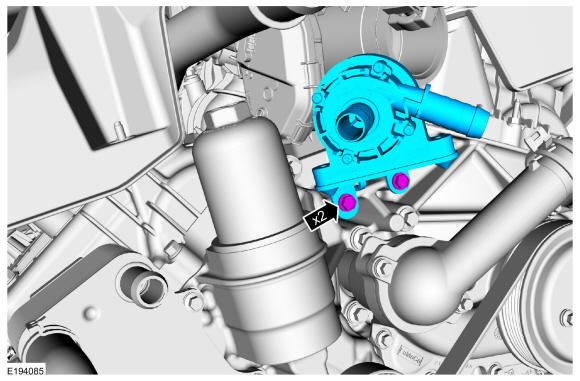

- Remove the bolts and the cabin heater coolant pump.
Torque: 62 lb.in (7 Nm)
