Air Conditioning (A/C) Clutch and Air Conditioning (A/C) Clutch Field Coil

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	412-001 (T71P-19703-B)Remover, Compressor Pulley

Activation

Remove the A/C compressor. Refer to Air Conditioning A/C Compressor procedure in REMOVAL AND INSTALLATION .

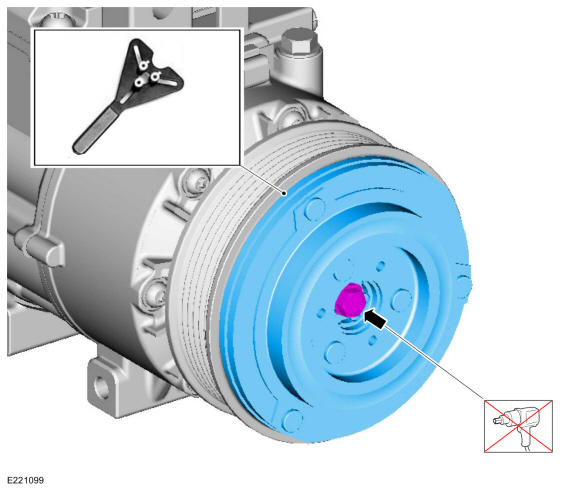

NOTE: If equipped with spring rubber clutch.

Using the universal clutch holding tool, hold the clutch and remove the A/C clutch disc and hub bolt.
- For fixed compressor
  Torque

  : 177 lb.in (20 Nm)
- For EVDC compressor
  Torque

  : 128 lb.in (14.5 Nm)
Courtesy of FORD MOTOR COMPANY

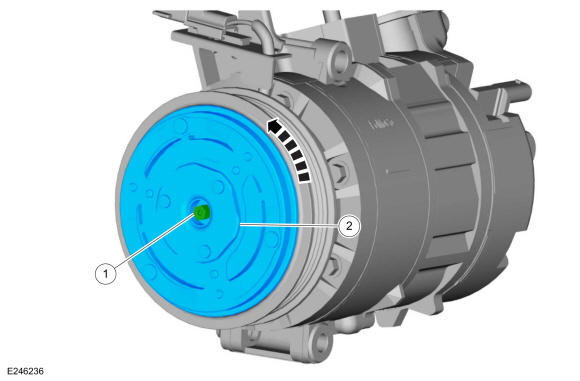

NOTE: If equipped with spring plate clutch.
- Hold the A/C compressor shaft.
- Rotate the A/C clutch hub counter clockwise to remove.
- For fixed compressor
  Torque

  : 177 lb.in (20 Nm)
- For EVDC compressor
  Torque

  : 128 lb.in (14.5 Nm)
Courtesy of FORD MOTOR COMPANY

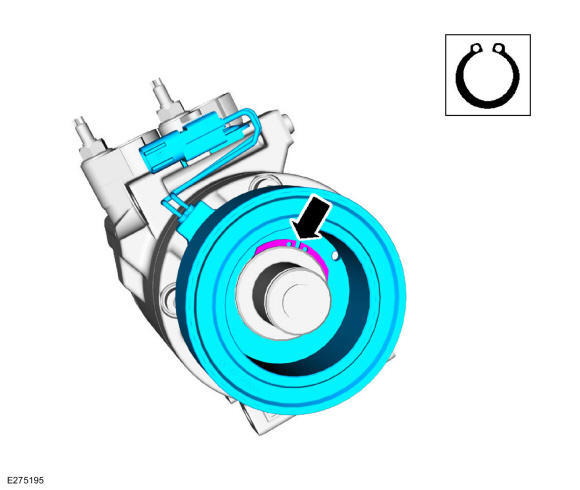

NOTE: Replacing the snap ring is only necessary when installing a new component.

Remove the A/C compressor pulley snap ring.

Courtesy of FORD MOTOR COMPANY

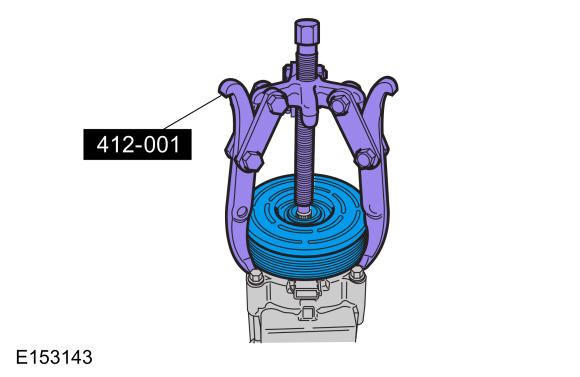

NOTE: Do not use air tools. Damage to the A/C clutch pulley or A/C compressor may result.

Remove the A/C compressor pulley. Install Special Service Tool: 412-001 (T71P-19703-B) Remover, Compressor Pulley.

Courtesy of FORD MOTOR COMPANY
Remove the A/C clutch field coil electrical connector retainer.
Torque

: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Replacing the snap ring is only necessary when installing a new component.

Remove the A/C clutch field coil snap ring, and remove the clutch field coil.

Courtesy of FORD MOTOR COMPANY
- Visually inspect the A/C clutch disc and hub, compressor pulley and clutch field coil for damage.
- Inspect for physical damage, including cracked or melted components or discoloration due to excessive heat.
- Inspect for excessive wear, including grooving in the A/C clutch disc and hub or the compressor pulley that is more than fingernail depth.
- Inspect for roughness in the A/C compressor pulley bearing.
To install, reverse the steps in this procedure.
NOTE: Spring plate clutch similar.

Measure and adjust the clutch air gap by removing or adding clutch disc and hub spacers. Refer to Air Conditioning A/C Clutch Air Gap Adjustment procedure in the appropriate Climate Control System article.

Courtesy of FORD MOTOR COMPANY
