Intrusion Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console. Refer to: Overhead Console .

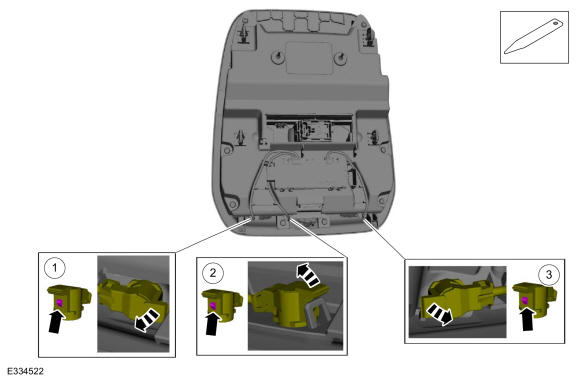

Position the intrusion sensors aside.
1. Release the tab and position theLH sensor aside.
  Use the General Equipment: Interior Trim Remover
2. Release the tab and position the center sensor aside.
  Use the General Equipment: Interior Trim Remover
3. Release the tab and position the RH sensor aside.
  Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

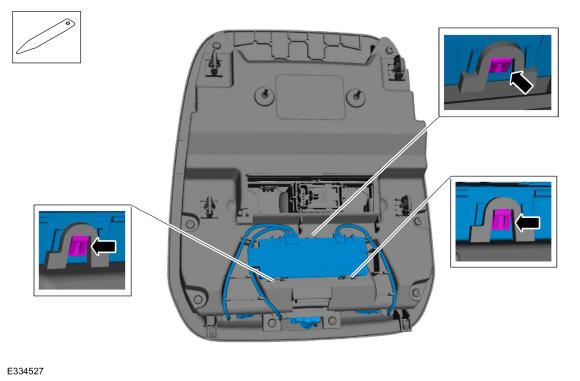

Release the tabs and remove the intrusion sensor.

Courtesy of FORD MOTOR COMPANY
