LVDS Cable Routing (12 inch display unit shown, 8 inch display unit similar)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

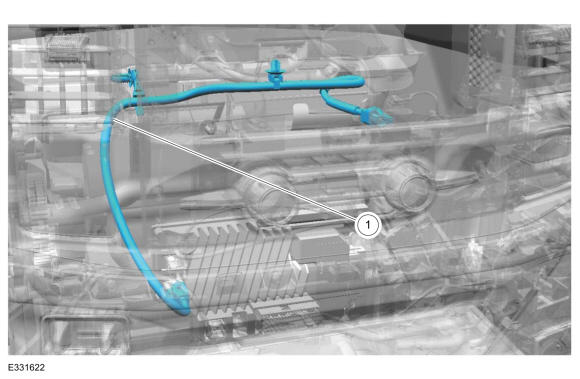

GFD560904Courtesy of FORD MOTOR COMPANY
Item Description
1 LVDS cable
