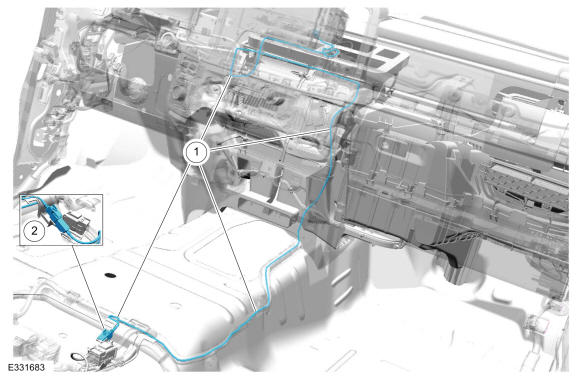

Front Automobile Audio Bus (A2B) Cable Routing

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
GFD560905Courtesy of FORD MOTOR COMPANY
Item Description
1 Front Automobile Audio Bus (A2B) cable
2 Automobile Audio Bus (A2B) cable in-line connection
