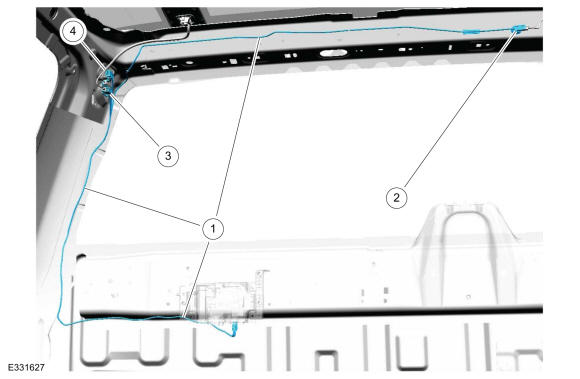

Cellular Antenna Cable Routing
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Cellular antenna cable assembly |
| 2 |
Primary cellular antenna cable |
| 3 |
Secondary cellular antenna cable |
| 4 |
GPS antenna cable (SYNC 4 Low only) |
