AM/ FM1 Antenna Cable Routing - Vehicles Equipped With A DAB Antenna

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

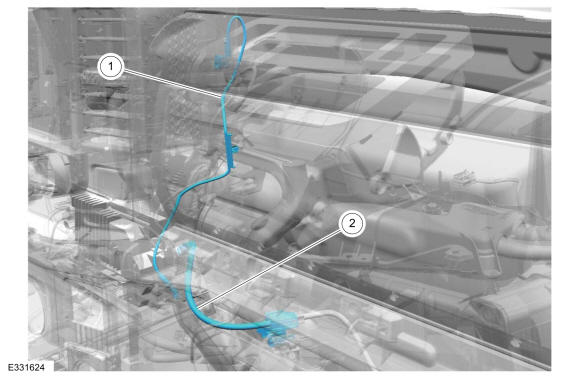

GFD560908Courtesy of FORD MOTOR COMPANY
Item Description
1 AM/ FM1 ACM-to- DAB amplifier antenna cable
2 DAB amplifier-to- AM/ FM1 antenna cable
