Windshield Wiper Motor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wiper linkage assembly. Refer to: Wiper Linkage Assembly .
NOTE: Be careful not to damage the link seals during removal. Failure to follow this instruction may result in poor windshield wiper performance.

Detach the RH windshield wiper link from the windshield wiper motor crank.
1. Detach the link.
2. Position the link aside.
Courtesy of FORD MOTOR COMPANY
NOTE: Be careful not to damage the link seals during removal. Failure to follow this instruction may result in poor windshield wiper performance.

Detach the LH windshield wiper link from the windshield wiper motor crank.
1. Detach the link.
2. Position the link aside.
Courtesy of FORD MOTOR COMPANY
NOTE: The wiper crank arm must be removed to wain access to the wiper motor retainers.

NOTE: Note the position of the components before removal.

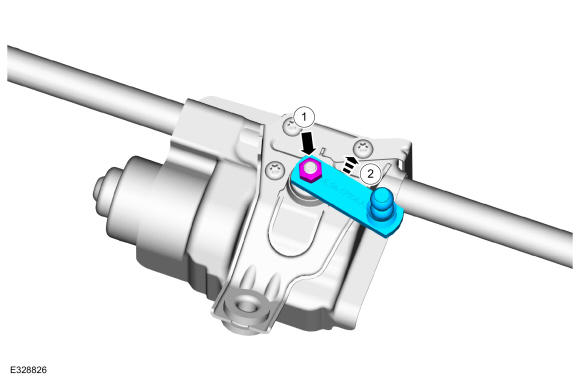

Remove the wiper crank arm.
1. Remove the retainer.
  Torque

  : 133 lb.in (15 Nm)
2. Remove the wiper crank arm.
Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the components before removal.

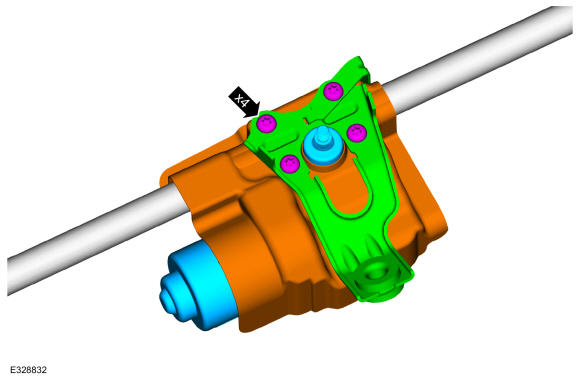

Remove the windshield wiper motor retainers, bracket, shield and the windshield wiper motor.

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
