Windshield Washer Reservoir: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

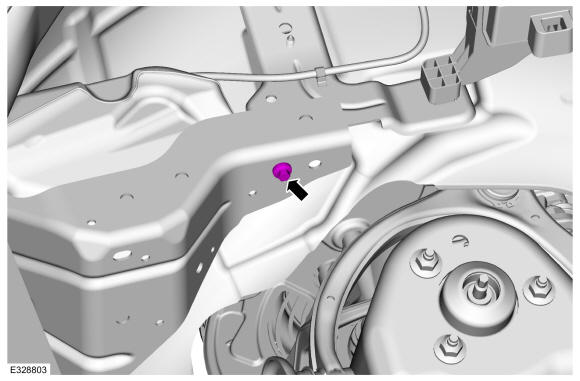

Remove the inboard windshield washer reservoir retainer.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

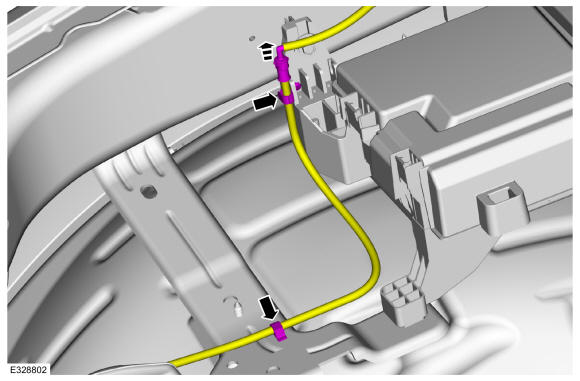

Disconnect the windshield washer hose, unclip and position the hose aside.

Courtesy of FORD MOTOR COMPANY

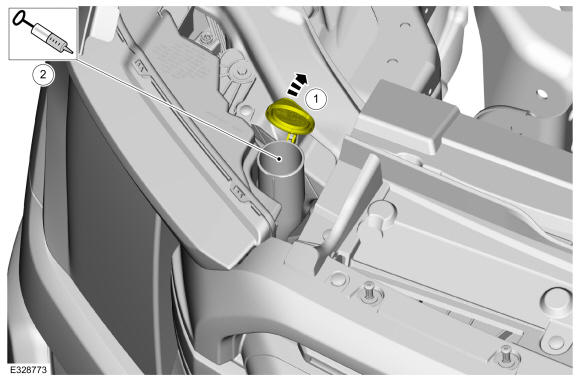

Siphon the windshield washer fluid out.
1. Open the windshield washer fluid reservoir cap.
2. Siphon the windshield washer fluid.
  Use the General Equipment: Fluid Suction Gun

  Use the General Equipment: Fluid Container
Courtesy of FORD MOTOR COMPANY
Remove RH headlamp assembly. Refer to: Headlamp Assembly .

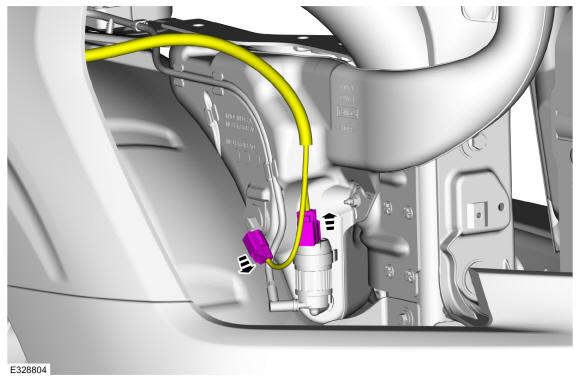

Disconnect the windshield washer fluid level sensor and the windshield washer pump electrical connectors and position the harness aside.

Courtesy of FORD MOTOR COMPANY

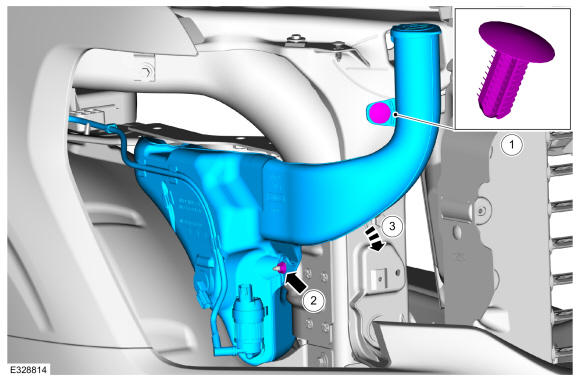

Remove the windshield washer fluid reservoir.
1. Remove the pin-type retainer.
2. Remove the nut.
  Torque

  : 80 lb.in (9 Nm)
3. NOTE: Be prepared to collect escaping fluid.

  Remove the windshield washer fluid reservoir. Use the General Equipment: Fluid Container

Courtesy of FORD MOTOR COMPANY
