Windshield Washer Pump: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

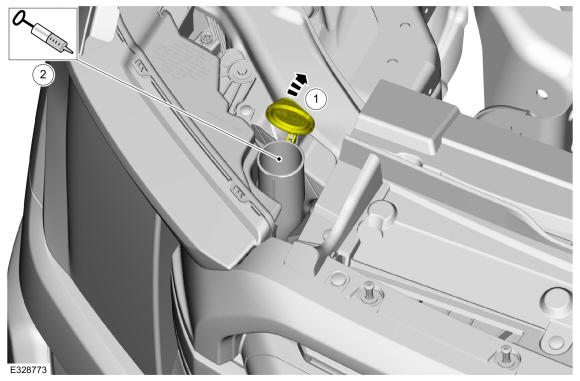

Siphon the windshield washer fluid out.
1. Open the windshield washer fluid reservoir cap.
2. Siphon the windshield washer fluid.
  Use the General Equipment: Fluid Suction Gun

  Use the General Equipment: Fluid Container
Courtesy of FORD MOTOR COMPANY
Remove the RH fender splash shield. Refer to: Fender Splash Shield .

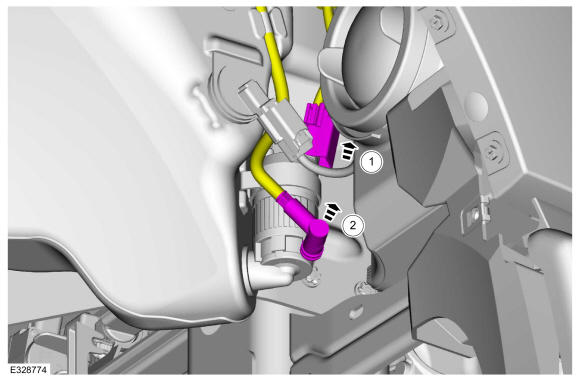

Disconnect the electrical and fluid hose connectors.
1. Disconnect the windshield washer pump electrical connector.
2. NOTE: Be prepared to collect escaping fluid.

  Detach the windshield washer hose.

  Use the General Equipment: Fluid Container
Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

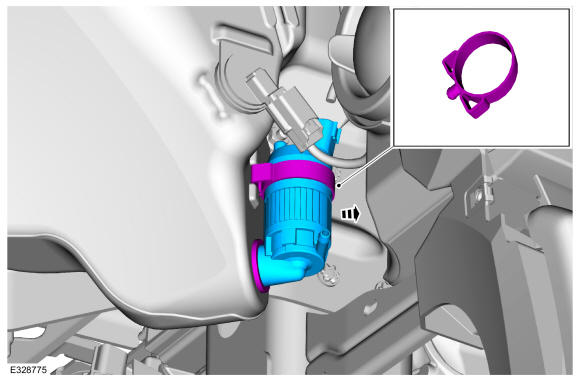

Remove the windshield washer pump.

Use the General Equipment: Fluid Container

Courtesy of FORD MOTOR COMPANY
