Parking, Rear, and License Plate Lamps

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

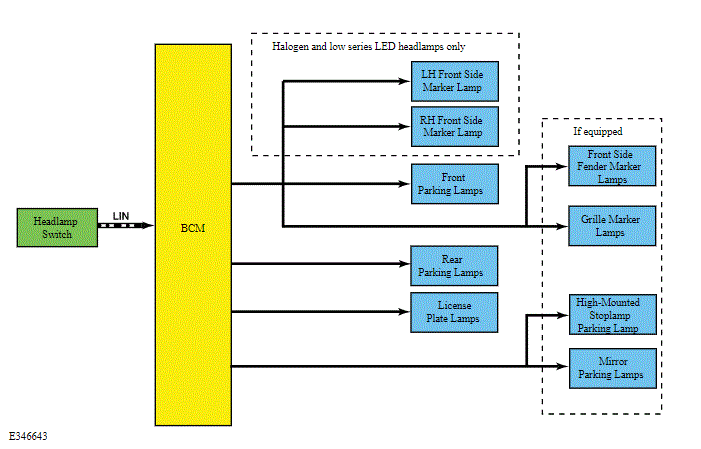

System Diagram

Courtesy of FORD MOTOR CO.

Parking Lamps

The headlamp switch sends a status message over the LIN circuit to the BCM to indicate the headlamp switch status (position or a fault with the headlamp switch). The BCM turns the parking lamps and headlamps on when the ignition is in RUN and the BCM detects a fault from the headlamp switch or wiring. This is normal behavior of the BCM when a fault has been detected with the inputs from the headlamp switch.

When the BCM receives an input requesting the parking lamps on, it provides voltage to the parking lamps.

Vehicles with LED headlamps utilize a LED control module mounted to each headlamp assembly, that controls the voltage to the parking lamp Light Emitting Diodes (LEDs) within the headlamp assembly.

The BCM also provides Field Effect Transistor (FET) protection of the parking lamps output circuits. When an excessive current draw is detected, the BCM disables the affected parking lamps circuit driver.
